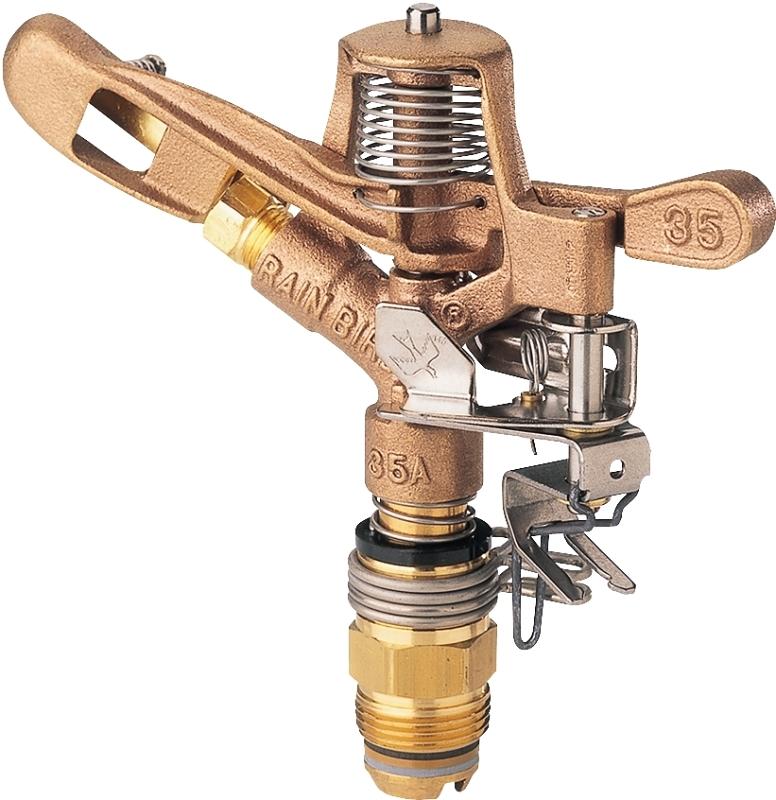

Rain Bird Impact Sprinkler Head

PRODUCT OVERVIEW

Brass impact sprinkler delivering reliable performance season after season. Designed after Rain Bird's original impulse sprinkler, with all the features and durability of modern engineering. This heavy-duty sprinkler is constructed of brass, bronze and stainless steel; lasts longer than competitors' zinc sprinklers.

Product Details

Adjustable Rotation Angle	20 to 340 deg
Connection Size	3/4 in
Dimensions	4.12 in W x 2 in D x 4.25 in H
Flow Rate	3.9 to 7.8 gpm
Full-Circle/Part-Circle	Full/Part-Circle
Material	Brass/Bronze/Stainless Steel
Pressure Rating	25 to 50 psi
Spray Pattern	Full/Part Circle

Features

• Easy to install and adjust, full and part circle coverage with infinite pattern adjustment
• Straight through water flow design for great dirty water performance
• Adjustable deflector flap adjusts stream length from 23 to 50 ft radius
• Diffuser screw breaks water into smaller droplets for uniform watering and allows up to 25% radius reduction
• Water saving die-cast, white bronze PJ spray arm controls stream and prevents side splash onto buildings as well as walkways
• Gritproof bearing for reliable operation
