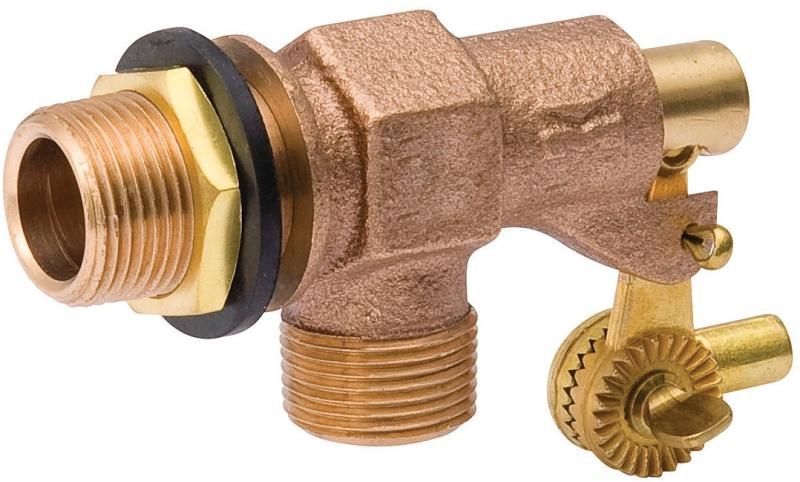

Tank Float Valve Bronze 1/2"

PRODUCT OVERVIEW

Two tapered threads on inlet for mating with pipe and a straight thread for a locknut. Machined flange for support against tank wall. All bronze bodies. Serrated arms for quick and easy adjustment of water level (all sizes). High tensile manganese bronze long and short arms. Stainless steel pivot bolt assembly. No-jam, single lever action. Replaceable seals. Free discharge flow capacity. No R400-1/2 12 gpm at 35 psi, 22 gpm at 85 psi. No R400-3/4 21 gpm at 35 psi, 39.9 gpm at 85 psi.

Product Details

Body Material	Bronze
Connection Type	Male x Male
Includes	Locknut and Washer
Nominal Size	1/2 in
Pressure Rating	125 psi
Rod Length	1/4 in
Rod Thread	20 TPI

Features

• Flange provides support against tank walls (male)
• Serrated arm allows easy adjustment of water level
• Pivot assembly prevents breakage during freezing
• Replaceable seals
