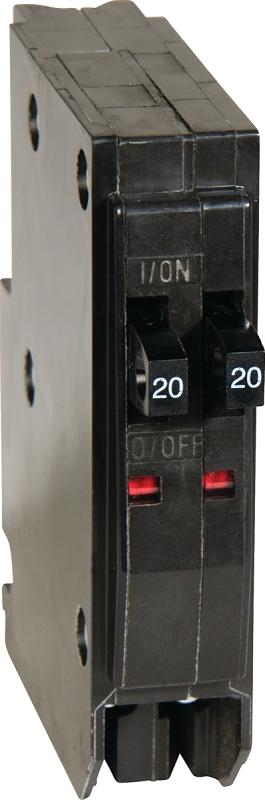

Breaker 20 Amp Tandem Qo

PRODUCT OVERVIEW

The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip™ Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive Qwik-Open™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.

Product Details

Actuator Type	Magnetic Thermal
Color	Black
Current Rating	20 A
Dimensions	0.75 in W x 2.91 in D x 3.22 in H
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	1
Number Of Spaces	1
Operating Frequency	50/60 Hz
Operating Temperature	104 deg F
Type	Mini Tandem
Voltage Rating	120/240 V
Wire Size	14 to 8 AWG

Features

• Shielded copper bus bar
• Available in single and three phase
• Ground bar is included with all main lugs load centers with three mounting locations
• Convertible mains let you meet changing job-site requirements
• Tangential main service knockouts
• Enclosure rotates for top or bottom feed to reduce service cable waste
• Qwik-Open circuit breaker protection
• Exclusive Visi-Trip red indicator
• Quick make - quick break mechanism
• Plug-on design, easy to install
