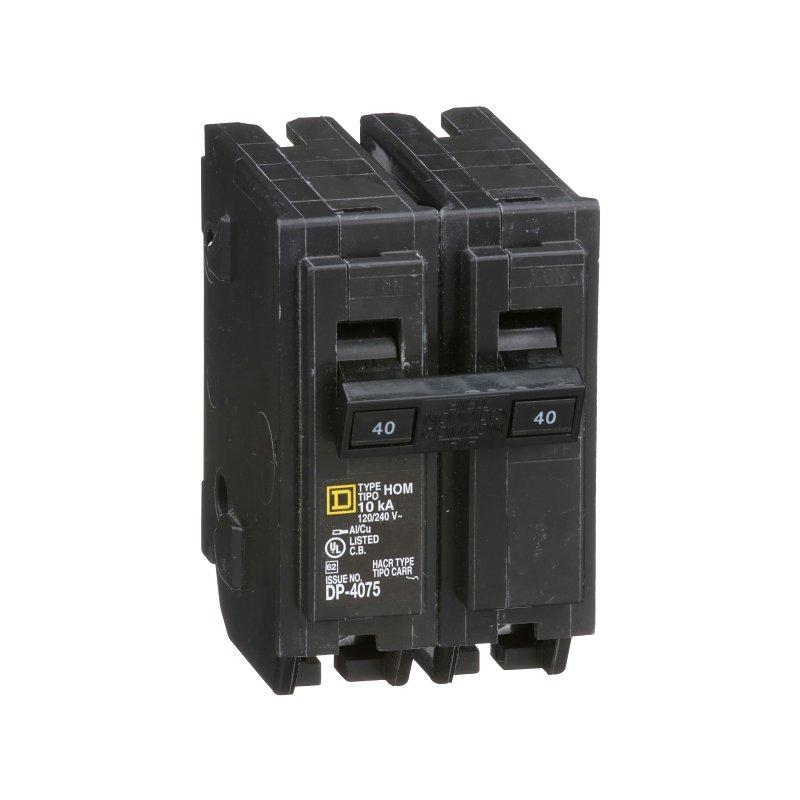

Breaker 40Amp Double Homeline
$22.99
Out of Stock
We don't have this item in stock right now, but 4 more are on the way and should arrive any day now.
PRODUCT OVERVIEW
Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.Product Details
| Color | Black |
| Current Rating | 40 A |
| Dimensions | 2 in W x 2.98 in D x 3.13 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Number Of Spaces | 2 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 104 deg F |
| Terminal Type | Lug |
| Trip Sensitivity | 100 A |
| Trip Type | Fixed |
| Type | Mini |
| Voltage Rating | 120/240 V |
| Wire Size | 8 to 2 AWG |
Features
- HOM one-pole standard circuit breakers (15 - 50 A)
- HOM two-pole standard circuit breakers (15 - 200 A)
- HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
- HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
- HOM ground-fault circuit interrupters (1 and 2-pole, 15 - 50 A)
- Square D arc-fault circuit-interrupters (1-pole, 15 A and 20 A)
- Square D combination arc-fault circuit interrupters (1-pole, 15 A and 20 A)
- Available accessories include handle attachments, filler plates, and neutral lugs
- HOM sub-feed lugs, two-pole, rated 125 A and 225 A
