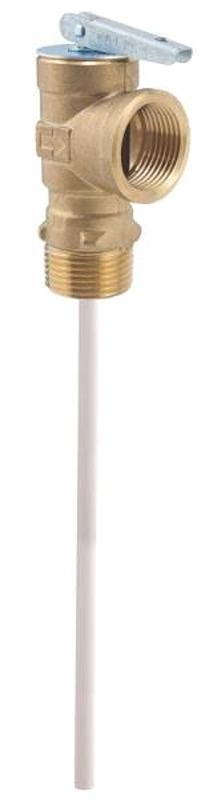

Valve Temp & Pressure Relief 3/4"

PRODUCT OVERVIEW

Used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. Features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. ASME rated and CSA listed. Temperature Relief of 210 deg F (99 deg C), Pressure Relief Range of 75 to 150psi (5.2 to 10.3 bar).

Product Details

Body Material	Brass
Connection Type	MNPT x FNPT
Nominal Size	3/4 in
Operating Pressure	75 to 150 psi
Temperature Rating	210 deg F

Features

• Thermo-bonded, non-metallic protective coating on thermostat
