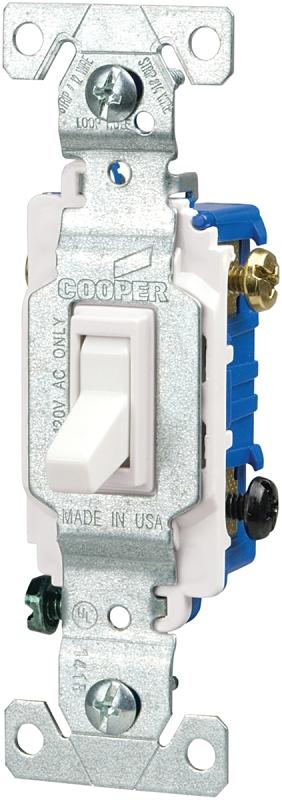

Switch 3-Way Lighted 15A Wht

PRODUCT OVERVIEW

Longer, wider strap on toggle lighted switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call backs due to job site breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire.

Product Details

Actuator Type	Cam
Color	White
Current Rating	15 A
Dielectric Strength	1500 V
Dimensions	4.2 in L x 1.44 in W x 0.88 in D
Housing Material	Polycarbonate
Mounting Type	Wall
Temperature Rating	-20 to 60 deg C
Voltage Rating	120 V
Wattage Rating	0.5 hp

Features

• Three-way switches feature additional push-in common termination for feed-through tapping
• Long, broad mounting strap virtually eliminates floating installations
• Push-in terminals accept #14 AWG solid wire only
• Side wire terminals accept up to #10 AWG solid wire
• Tri-combo screws accept slotted, Phillip's and Robertson-head tools for installation flexibility
• Lighted toggle glows in "OFF" position
