PRODUCT OVERVIEW

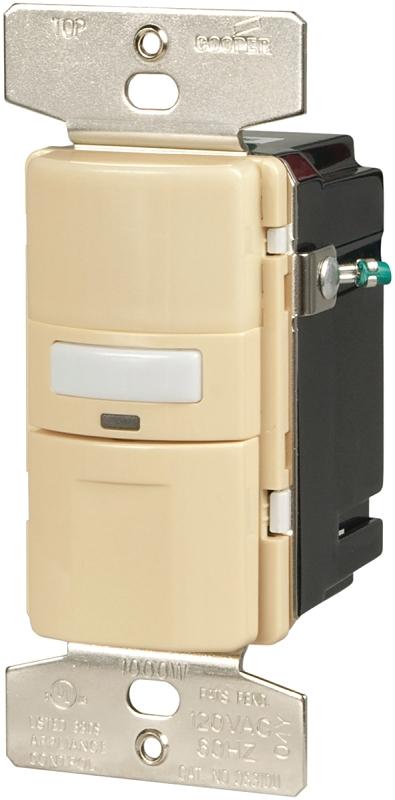

Occupancy/vacancy sensor switches use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide auto-On/Off or manual-On/auto-Off operation while vacancy sensors provide manual-On/auto-Off operation only (CA Title 24 Compliant). The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Both versions provide 1-pole (single-location) and 3-way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator screwless wallplate.

Product Details

Color	Ivory
Connection Type	Wire
Current Rating	8.3 A
Frequency Rating	60 Hz
Includes	Mid-Size Decorator Wallplate
Lamp Type	CFL Fluorescent Halogen Incandescent LED
Material	Polycarbonate
Mounting Type	Wall
Number of Poles	1
Sensing Angle	180 deg
Sensing Range	1000 sq-ft
Sensor Type	Motion
Temperature Rating	0 to 40 deg C
Timer Range	30 s to 30 min
Voltage Rating	120 V
Wattage Rating	600 W

Features

• Can be wired as a single pole or 3-way device
• Selectable On/Off LED nightlight with press and hold dimming function
• Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
• Push pad design provides minimal travel and crisp actuation
• Replaces a standard light or fan switch
• Occupancy sensor provides a selectable ambient light override preventing lights from switching on, when there is acceptable natural light
• Occupancy sensor version allows to toggle between auto-On/Off or manual-On/auto-Off mode with a simple press and hold of switch
• Occupancy sensor provides for a bypass feature to allow the sensor to perform as a traditional switch
• Electrostatic discharge protection
• No leakage to load in off mode
