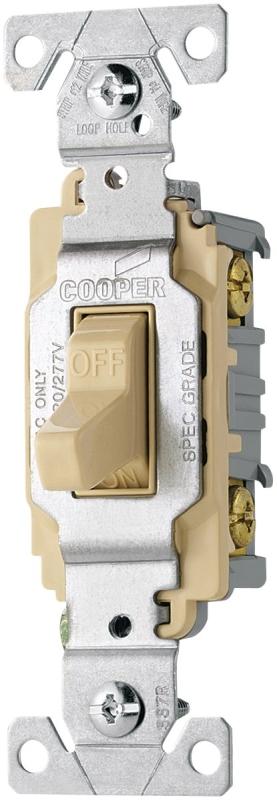

Switch Comm Lighted 20A Ivry
$11.59
In Stock
We currently have 2 in stock.
PRODUCT OVERVIEW
Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. 20 A, 120/277 V. Meets all UL 20 requirements, Federal Specifications WS 896.Product Details
| Actuator Type | Cam |
| Color | Ivory |
| Contact Material | Silver |
| Current Rating | 20 A |
| Dielectric Strength | 1500 V |
| Housing Material | Nylon |
| Mounting Type | Wall |
| Number of Poles | 2 |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Screw |
| Voltage Rating | 120/277 V |
| Wattage Rating | 1 to 2 hp |
Features
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to #10 AWG solid or stranded
- Terminal screws backed out-ready for wiring
- Tri-combo head mounting and terminal screws ease installation
