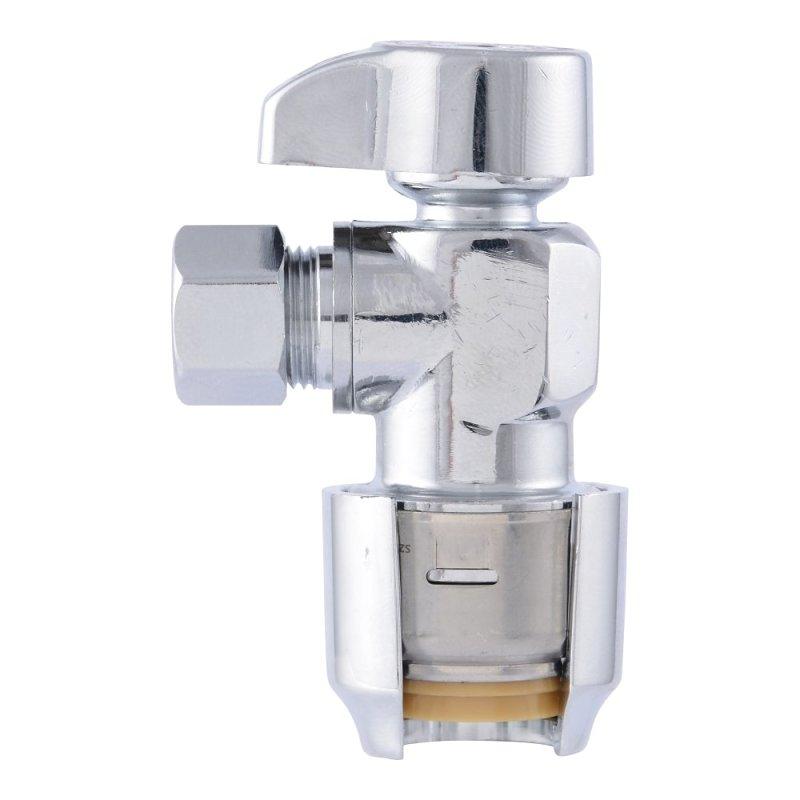

Valve Stop Angle Qtr Turn 1/2X3/8"

PRODUCT OVERVIEW

SharkBite Max angle stops are used on stub-outs coming out of the wall and are used to control and shut off water flow to fixtures and appliances for maintenance and repair. Innovative design with a 1/2 in push-to-connect inlet makes for quick-installation, and quarter-turn full-port brass ball valves make for easy operation. Ideal for working in tight spaces. Faster install times and ease of use reduce installation errors.

Product Details

Body Material	DZR Brass
Connection Size	1/2 x 3/8 in
Connection Type	Push-to-Connect x Compression
Dimensions	2.6 x 1.7 x 1.1 in
Finish	Chrome Plated
Media	Water
Port Type	Quarter-Turn Full
Pressure Rating	125 psi
Softgoods material	EPDM
Suitable for	PEX Copper CPVC PE-RT and HDPE SDR-9 Pipe
Temperature Rating	160 deg F
Trim Material	Stainless Steel
Type	Angle Stop

Features

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
• Can be installed on wet lines and pressure tested immediately
• Stainless steel retainer adds strength and durability
• High-performance DZR lead-free brass body
• No special tools, crimping, soldering or glue required
• Can be rotated after installation
• No tube liner required for PEX
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool
