PRODUCT OVERVIEW

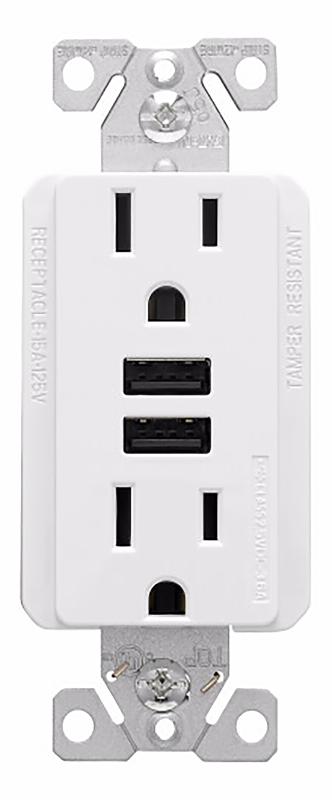

Eaton USB Combination Receptacle, 125 VAC, 5 VDC, 15 A at 125 VAC, 3.6 A at 5 VDC, Frequency Rating: 140 kHz, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, Wiring Type: Screw Terminals, Side and Back, Wire Size: 14 to 12 AWG, NEMA Configuration: NEMA 5-15R, Operating Temperature: -4 to 140 deg F, Thermoplastic, White, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D

Product Details

Color	White
Current Rating	15 A at 125 VAC 3.6 A at 5 VDC
Dimensions	4.19 in H x 1.3 in W x 1.4 in D
Frequency Rating	140 kHz
Material	Thermoplastic
NEMA Configuration	NEMA 5-15R
Number of Poles	2
Number of USB Ports	2
Number Of Wires	3
Operating Temperature	-4 to 140 deg F
Voltage Rating	125 VAC 5 VDC
Wire Size	14 to 12 AWG
Wiring Type	Screw Terminals Side and Back

Features

• Dual USB ports charges most compatible USB electronic devices
• Tamper-resistant shutters provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
• Replaces a standard duplex receptacle
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
• Steel mounting strap is zinc-plated for added corrosion resistance
• Convenient patented built-in wire strippers speed installation
