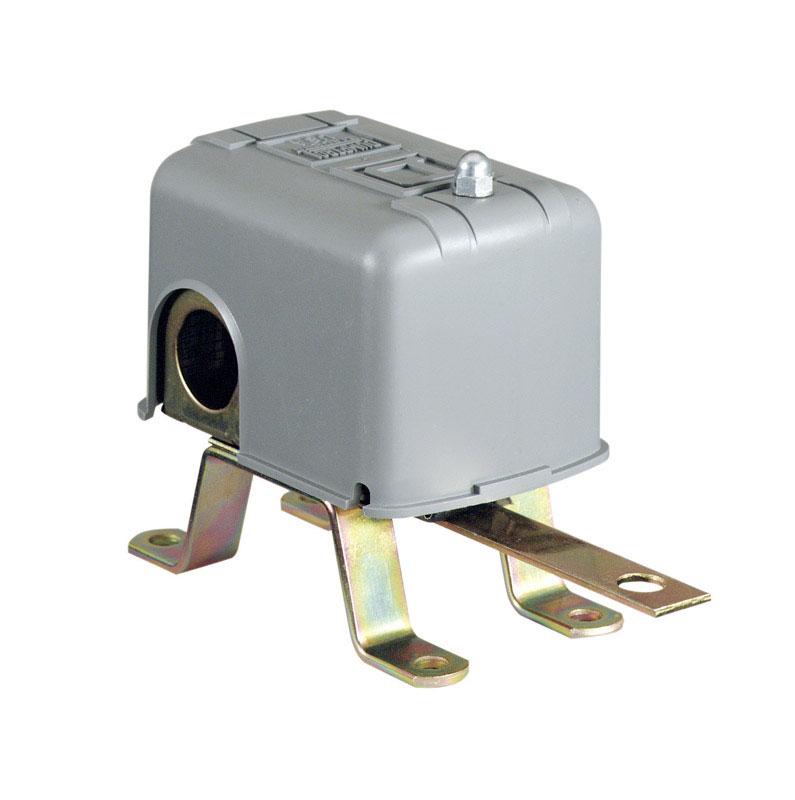

Float Switch Nema1

PRODUCT OVERVIEW

Float switch is designed for use in open tank or sump pump applications. Reverse action contacts open on liquid rise. 2-pole, NEMA 1 enclosure, bracket mounted, screw clamp terminals, UL/CSA listed, RoHS compliant, contacts open on liquid rise. Individually boxed.

Product Details

Connection Type	Screw Clamp
Contact Form	DPST-DB
Enclosure Type	NEMA 1 UL 50
Mounting Type	Pedestal
Operating Cycles	300
Temperature Rating	-22 to 220 deg F
Voltage Rating	230 V
Wattage Rating	3.7 kW
