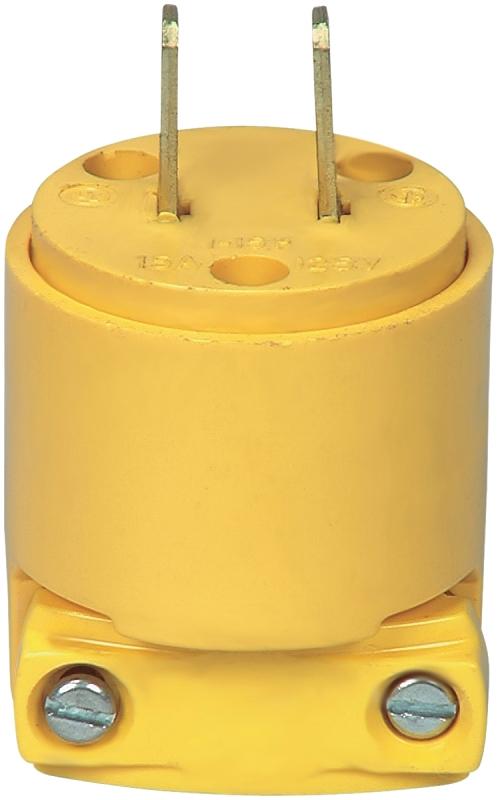

Plug Strt Bld 2P 15A 125V Yel

PRODUCT OVERVIEW

Blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out, ready for wiring. Resists chemical attack and stays flexible in extremely low temperatures. Combination slot/Phillips head mounting and terminal screws. 15 A/125 V. UL listed. 1.54 in Dia x 1.65 in tall. 1/4 to 21/32 in cord diameter. NEMA 1-15.

Product Details

Cable/Wire Size	1/4 to 21/32 in
Color	Yellow
Current Rating	15 A
Dimensions	1.65 in L x 1.54 in W
Grounding Type	Non-Grounded
Material	Vinyl
Mounting Type	Screw
NEMA Configuration	NEMA 1-15
Number of Poles	2
Number Of Wires	2
Operating Temperature	-20 to 60 deg C
Type	Heavy-Duty Straight Blade
Voltage Rating	125 V

Features

• Solid brass plug blades are firmly embedded in body
• Terminal screw clamps are designed to contain wire and prevent binding
• Terminal screws backed out ready for wiring
• Terminals in individual chambers to positively insulate conductors
• Vinyl plugs and TPR rubber connectors resist chemical attack and stay flexible in extremely low temperatures
• Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
