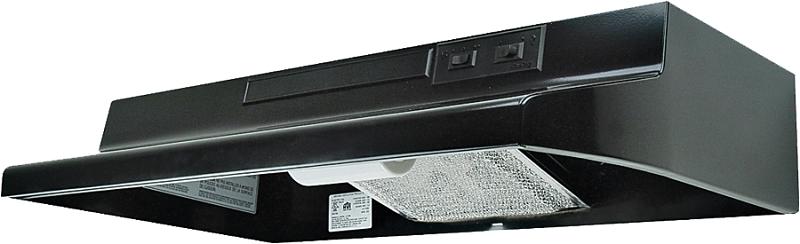

Range Hood Ducted Black 30"

PRODUCT OVERVIEW

Low-profile contemporary style with a 60 W maximum cook top light (bulb not included) and a two speed fan control. Comes equipped for 3-1/4 in x 10 in vertical or horizontal ducting, (duct adapter and damper included). Can be converted to ductless operation with the addition of model RF-34 charcoal odor filter, (not included) or to a 7 in round, for vertical ducting, with the addition of model E-22A collar and damper, (not included). 180 cfm, 7 sones/horizontal, 180 cfm, 7.5 sones/vertical. UL listed. HVI 2100 certified. Uses #RF-55 filter.

Product Details

Color	Black
Current Rating	2.1 A
Depth	12 in
Duct Size	3-1/4 x 10 in
Fan Speed	2
Filter Type	Grease
Flow Rate	180 cfm
Height	23.75 in
Includes	Light Lens Mounting Screws
Light Type	CFL Incandescent
Material	Cold Rolled Steel
Operating Frequency	60 Hz
Sones	7 Horizontal 7.5 Vertical
Voltage Rating	120 V
Wattage Rating	87 W
Width	30 in

Features

• Two-speed motor control
• Can be ducted either horizontally or vertically with the included duct collar and back draft damper
