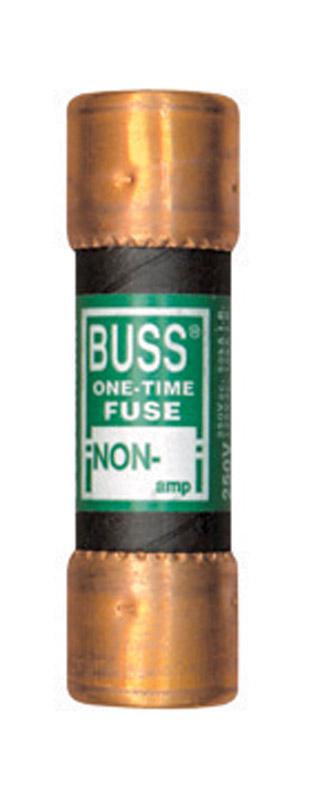

Fuse Cartridge One-time 20A

PRODUCT OVERVIEW

Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General-Purpose fuses have no time-delay and protect fuse panels, appliances and branch circuits.

Product Details

Body Material	Melamine
Current Rating	20 A
Diameter	0.56 in
Element Type	Single
Fuse Type	Cartridge
Interrupt Rating	50 kA
Length	2 in
Rejection/Non-Rejection	Non-Rejection
Voltage Rating	250 VAC 125 VDC

Features

• Protect lighting, heating and other circuits not subject to temporary surges and where available short-circuit currents are relatively low
• NON one-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
• Basic protection 250 V NON Class K5 and H general-purpose, non-current-limiting, one-time fuses
