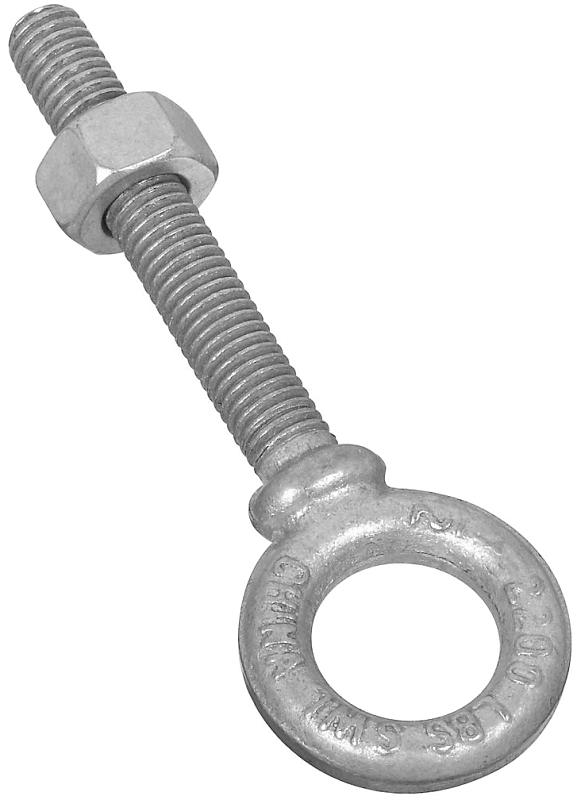

National Eye Bolt W/nut Galv 1/2X3-1/4"

PRODUCT OVERVIEW

General-purpose eye bolt used where high strength is required. Ideal for marine and agricultural applications. Has shoulder so bolt can be tightened in place. Forged steel for superior strength. Galvanized for corrosion resistance. With hex nut.

Product Details

Eye Diameter	1 in ID x 1-3/4 in OD
Includes	Hex Nut
Material	Galvanized Steel
Overall Length	5-5/32 in
Shank Diameter	1/2 in
Shank Length	3-1/4 in
Thread Length	3-1/8 in
Thread Size	1/2-13
Working Load Limit	2200 lb

Features

• Designed with shoulder so that it can be tightened in place
• Bar code label is color coded to identify wire size
• Pintle punched for 5/16 in (1/2 in size) or 3/8 in (5/8 in size) bolts
• Great strength (SWL) is clearly defined on label
• When subjected to 312 hr of salt fog spray testing, zinc-plated hardware showed severe corrosion while hardware with WeatherGuard protection withstood these harsh conditions with very little deterioration
