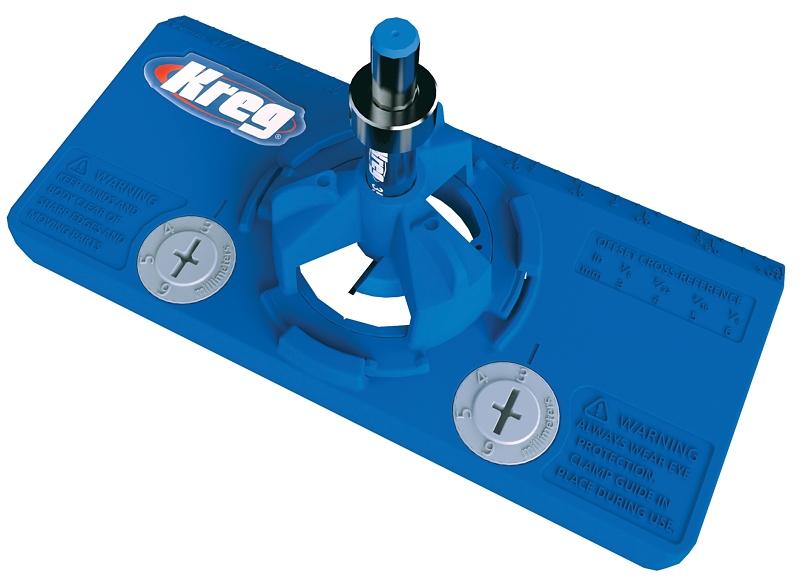

Kreg Concealed Hinge Jig

PRODUCT OVERVIEW

The concealed hinge jig takes the guesswork out of installing cabinet doors using concealed hinges. This economical, easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well. Plus, the concealed hinge jig works with an ordinary drill and the included carbide tipped bit. The concealed hinge jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called "Euro hinges") using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset and drills to the ideal depth every time thanks to a depth stop collar. The jig is simple to use and it ensures that you can mount cabinet doors that fit great and work properly.

Product Details

Color	Blue
Includes	(1) Jig Base with Index Cams (1) Drill Guide (1) 35 mm Carbide-Tipped Drill Bit (1) Stop Collar with Hex Wrench
Material	Nylon
Specifications	3 mm 4 mm 5 mm 6 mm Hinge Offset
Suitable for	35 mm Cup-Style Concealed Hinges

Features

• The concealed hinge jig consists of a glass-filled nylon base with a hole that receives a drill guide
• Reliable drilling with bit guide and stop collar
• The concealed hinge jig comes with a high-quality, carbide tipped bit to ensure great results
• The concealed hinge jig is designed to be intuitive for beginners to use, but robust enough for professionals
• Accurate hinge positioning with built-in indexing tabs
• Repeatable results with built-in measuring scales
• Simple to use with any drill and requires no special tools
• Adjustable cams ensure proper hinge offset
• Strong, lightweight materials for easy handling
