Pigtail 22-12 Awg Nylon Conn

PRODUCT OVERVIEW

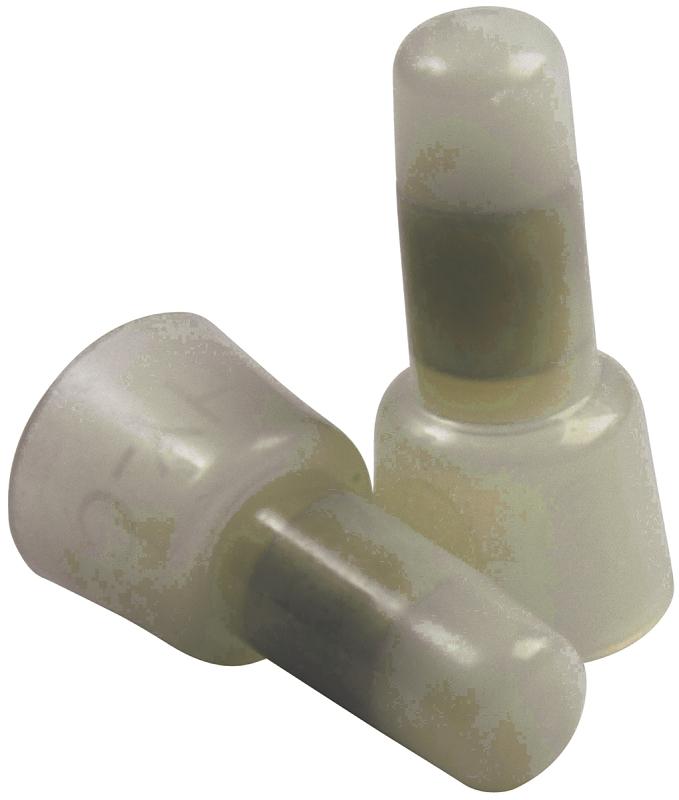

Closed end connectors are ideal for making a simple connection of two or more wires to create a pigtail connection. The pigtail connector is a closed end, crimp on wire connector used to secure electrical connection points. The proper installation method is to connect the wires together first and then add a pigtail connector and crimp tight to provide a safe, secure and stable connection particularly in applications subject to vibration. Designed to be used with both solid and stranded wire these closed end connectors feature a tin-plated seamless copper sleeve with translucent nylon insulation. Connector rated for #22 to #10 AWG applications up to 300 V.

Product Details

Color	White
Contact Coating	Tin
Contact Material	Copper
Height	4.38 in
Housing Material	Nylon
Voltage Rating	300 V
Wire Size	22 to 10 AWG

Features

• Translucent nylon insulation is corrosion and chemical-resistant
• Tin-plated copper sleeve
• Seamless copper construction
• Designed for use with solid or stranded wire
• Vibration-resistant
