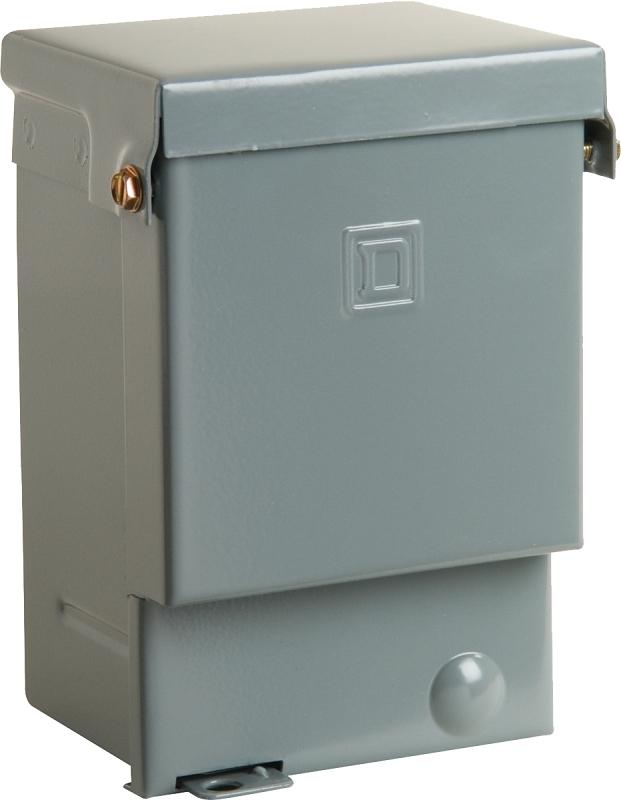

PRODUCT OVERVIEW

Air conditioning disconnects from Schneider Electric are Underwriters Laboratories® (UL®) Listed NEMA Type 3R rainproof. They are designed to meet all current National Electrical Code® (NEC®) requirements for a disconnecting means on residential and commercial air conditioning installations, as well as other single-phase applications, such as swimming pools and pump houses.

Product Details

Current Rating	60 A
Enclosure Material	Steel
Height	7.0 in
HP Rating	10 hp
Length	6-1/2 in
Mounting Type	Panel Surface
Nema Rating	NEMA 3R
Number of Phases	1
Number of Poles	2
Number Of Wires	2
Terminal Type	Screw
Type	Molded Non-Fused
Voltage Rating	240 V
Wattage Rating	7400 W
Width	4.63 in

Features

• Metallic enclosure has removable cover housing (front, top, and side walls) which provides open area for mounting and convenient installation
• Easy access to wiring terminals for conductor installation
• Optional mounting bracket, when used with metallic enclosure, simplifies installation for stucco and lapped siding applications
