PRODUCT OVERVIEW

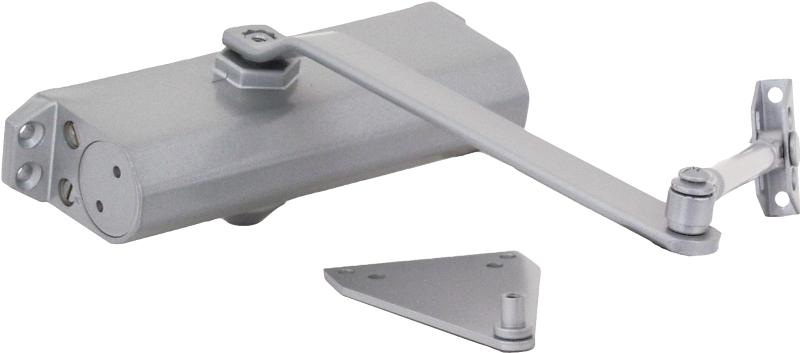

The ProSource door closer has an aluminum casted body with steel arm to resist corrosion. It's steel rack and pinion is heat treated for smooth action and minimum wear. The closer is lubricated with stable hydraulic fluid for multi-climate operation. It has an adjustable back check, fits left handed or right handed installations, does not have hold-open feature and the power size is 1-4. This product is ADA compliant and it comes boxed.

Product Details

Arm Material	Steel
Arm Type	Parallel Arm
Automatic/Manual	Automatic
Color	Silver
Finish	Silver
Hand Orientation	Non-Handed
Height	8.5 in
Housing Length	210 mm
Includes	PA Bracket
Material	Aluminum
Mounting Hole Distance	230 x 19 mm
Mounting Hole Size	7 mm
Mounting Type	Regular Parallel Arm Top Jamb
Spring Size	1 to 4
Weight Capacity	240 lb

Features

• Independent adjustable back check, closing & latching valves
• Full 180 degree door swing
• Universal arm assembly for all applications
• The door closer is ANSI grade 1
• Adjustable size is #1-4
