PRODUCT OVERVIEW

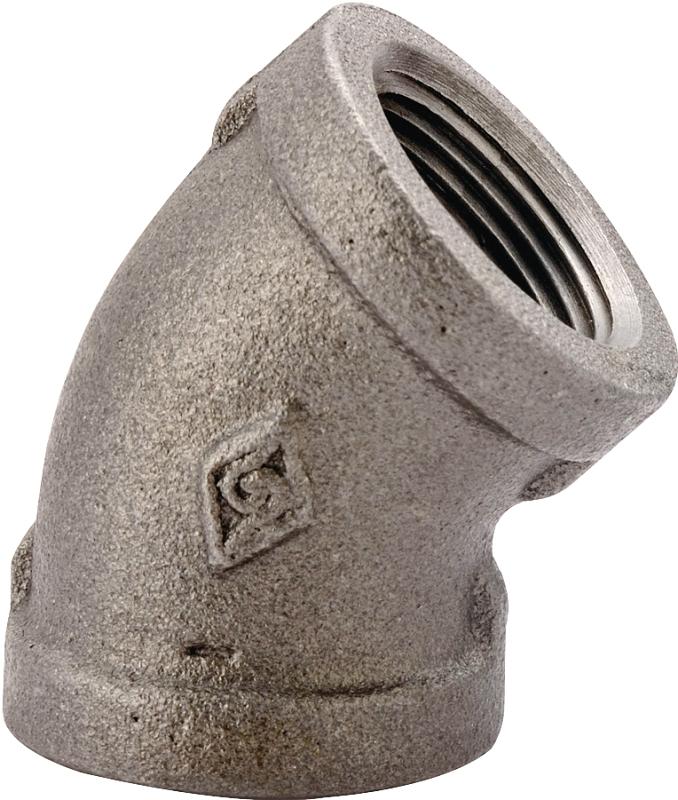

These pipe elbows are durable, corrosion resistant street elbows enable change of direction and angles of pipes. They are lead-free and feature a solid brass construction and the threaded ends have both male and female configurations.

Product Details

Angle	45 deg
Connection Type	FIP
Material	Malleable Iron
Nominal Size	1-1/2 in
Operating Temperature	-4 to 572 deg F
Pressure Rating	300 psi
Schedule Rating	SCH 40
Wall Thickness	0.15 in

Features

• The pipe elbows have black finish
• The pipe elbows are UL and FM certified
• The pipe elbows meets ASTM and ASME standards
• The pipe elbows are made of 150 class malleable steel
• The pipe elbow piping direction can change by 45 degrees
