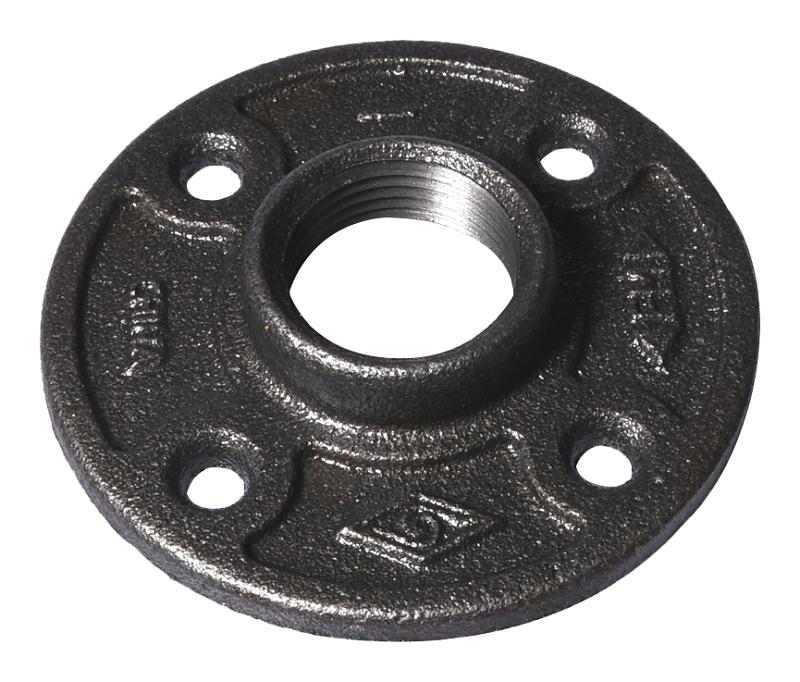

Flange Blk Floor 1-1/4"
$6.69
In Stock
We currently have 8 in stock.
PRODUCT OVERVIEW
ProSource Floor Flange, Nominal Size: 1-1/4 in, FIP Connection, Flange Diameter: 4.2 in, Bolt Hole Diameter: 0.28 inch (7 mm), Number of Bolt Holes: 4, Length Through Bore: 0.75 in, Face Type: With Bolt Holes, Maximum Pressure: 300 psi, Operating Temperature: -4 to 572 deg FProduct Details
| Bolt Hole Diameter | 0.28 inch (7 mm) |
| Connection Type | FIP |
| Face Type | With Bolt Holes |
| Flange Diameter | 4.2 in |
| Length through Bore | 0.75 in |
| Maximum Pressure | 300 psi |
| Nominal Size | 1-1/4 in |
| Number of Bolt Holes | 4 |
| Operating Temperature | -4 to 572 deg F |
Features
- The pipe flange has a black finish
- The pipe flange is UL and FM certified
- The pipe flange meets ASTM and ASME standards
- The pipe flange is made of 150 class malleable steel
- The pipe flange is suitable for securing pipe to wall or floor mounts
