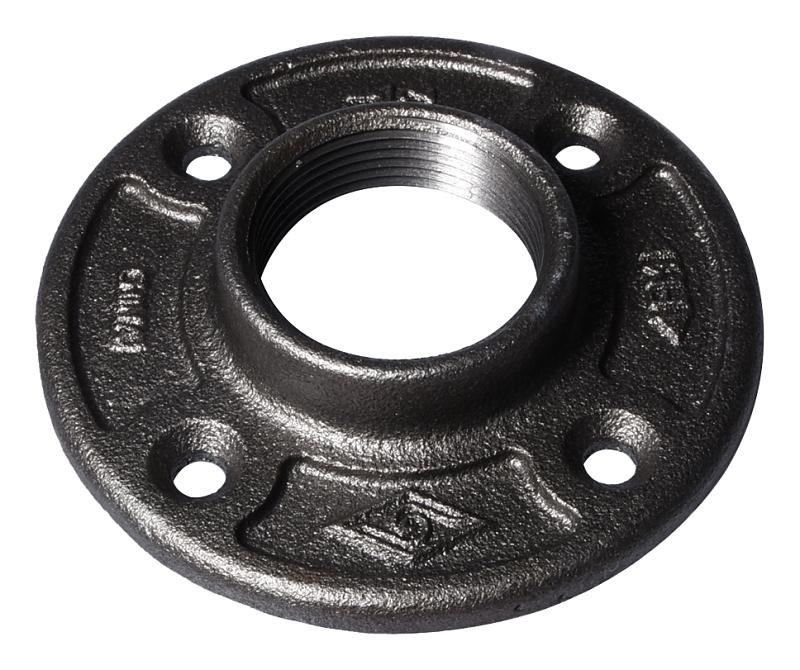

Flange Blk Floor 1-1/2"

PRODUCT OVERVIEW

ProSource Floor Flange, Nominal Size: 1-1/2 in, FIP Connection, Flange Diameter: 4.6 in, Bolt Hole Diameter: 0.31 inch (8 mm), Number of Bolt Holes: 4, Length Through Bore: 0.89 in, Face Type: With Bolt Holes, Maximum Pressure: 300 psi, Operating Temperature: -4 to 572 deg F

Product Details

Bolt Hole Diameter	0.31 inch (8 mm)
Connection Type	FIP
Face Type	With Bolt Holes
Flange Diameter	4.6 in
Length through Bore	0.89 in
Maximum Pressure	300 psi
Nominal Size	1-1/2 in
Number of Bolt Holes	4
Operating Temperature	-4 to 572 deg F

Features

• The pipe flange has a black finish
• The pipe flange is UL and FM certified
• The pipe flange meets ASTM and ASME standards
• The pipe flange is made of 150 class malleable steel
• The pipe flange is suitable for securing pipe to wall or floor mounts
