Floor Flange Galv 1"
$12.29
In Stock
We currently have 2 in stock.
PRODUCT OVERVIEW

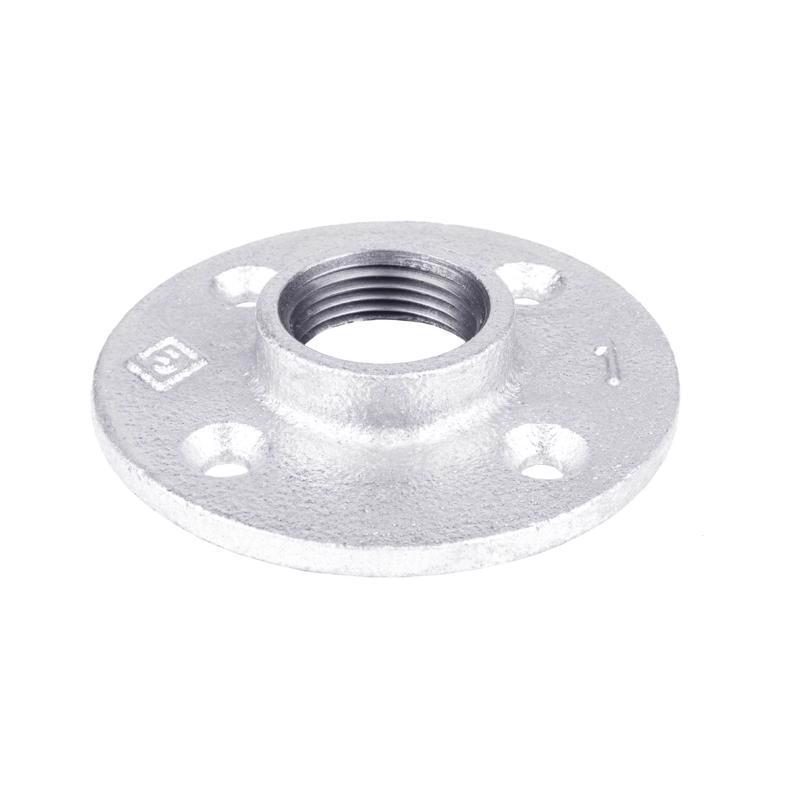

The galvanized floor flanges are made from malleable iron for tensile strength. Its galvanized finish resists rust in water, air, and steam applications.Product Details
| Bolt Hole Diameter | 0.28 in 7 mm in (mm) |
| Color | Galvanized |
| Connection Type | FIP |
| Face Type | With Bolt Holes |
| Flange Diameter | 3.8 in |
| Length through Bore | 0.67 in |
| Material | Malleable Iron |
| Maximum Pressure | 300 psi |
| Nominal Size | 1 in |
| Number of Bolt Holes | 4 |
| Operating Temperature | 5 to 572 (-20 to 300) deg F (deg C) |
| Suitable for | For Securing Pipe to Wall or Floor Mounts |
Features
- Corrosion-resistant galvanized finish
- UL and FM, NSF372/NSF61 certified
- Meets ASTM and ASME standards
- 150 class malleable steel
- For securing pipe to wall or floor mounts
