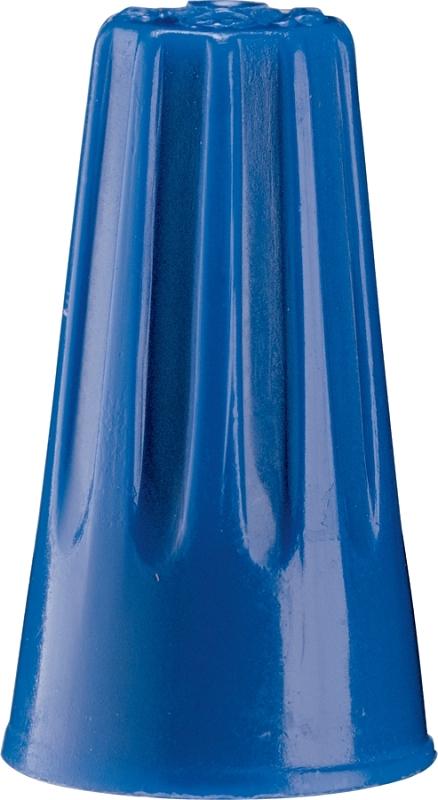

Wire Connector Blue 22-14

PRODUCT OVERVIEW

The industry's standard twist-on connector with quality performance and durability. GB specifies this connector for a wire range of 22 to 16 AWG and recommends a wire combination of min (3) #22 wire and max (3) #16. It is blue in color for easy color code identification. Recommended for copper to copper connections only. Made from tough, thermoplastic shells which guard against hydrocarbons, diluted acid or alkaline solutions.

Product Details

Color	Blue
Contact Coating	Zinc
Contact Material	Steel
Height	4.33 in
Housing Material	Polypropylene
Length	25/64 in
Mounting Type	Screw
Voltage Rating	300 V
Width	25/64 in
Wire Size	22 to 16 AWG

Features

• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
• Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 221 deg F
• High-dielectric shell features deep skirt design to prevent exposure of bare wire
• Rated at 300 V max
• Copper to copper connections only
