PRODUCT OVERVIEW

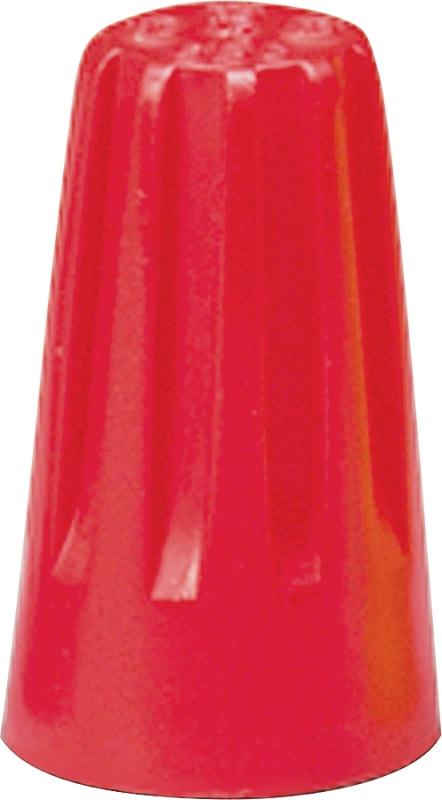

WireGard™ twist-on wire connectors are designed for general-purpose applications requiring the connection of 2 or more copper wires. WireGard™ connectors feature a straight type polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity. These all-purpose connectors require fewer turns to meet required torque and meet or exceed UL pull out and dielectric test requirements. The tough thermoplastic shell shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions. The high-dielectric shell also features a deep skirt design to prevent exposure of bare wire. Flame-retardant properties resist heat distortion up to 221 deg F. Color coded for quick and easy size selection.

Product Details

Color	Red
Contact Coating	Zinc
Contact Material	Steel
Height	6.05 in
Housing Material	Polypropylene
Length	21/32 in
Mounting Type	Screw
Voltage Rating	300/600 V
Width	21/32 in
Wire Size	18 to 10 AWG

Features

• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
• Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 221 deg F
• High-dielectric shell features deep skirt design to prevent exposure of bare wire
• Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
• Copper to copper connections only
