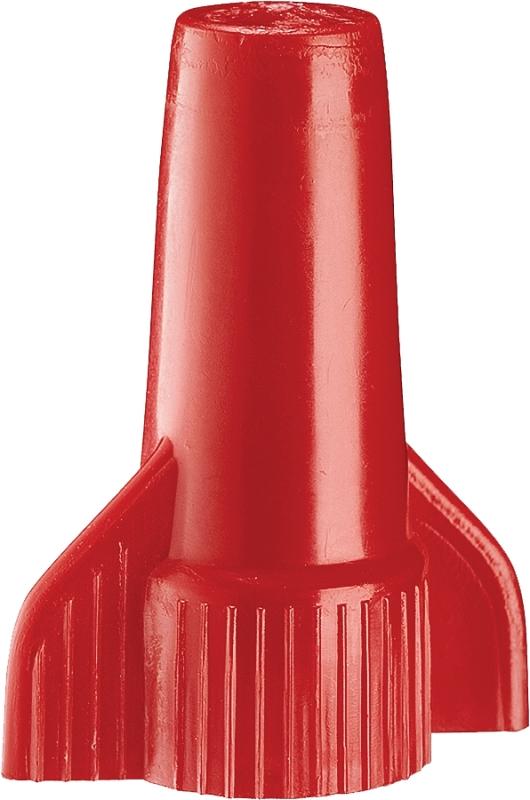

Wire Connectors Red 22-6Awg

PRODUCT OVERVIEW

GB's exclusive WingGard™ line of wire connectors leads the industry in quality and durability. The WingGard™ features a high leverage, easy-on wing-type design. The wings are knurled for a sure grip and offset for greater twisting leverage. The square-wire plated spring instantly adjusts to the shape and size of the splice. The entire line of WingGard™ is colored for easy identification.

Product Details

Color	Red
Contact Coating	Zinc
Contact Material	Steel
Height	6.4 in
Housing Material	Polypropylene
Length	1-1/4 in
Mounting Type	Screw
Voltage Rating	300/600 V
Width	29/32 in
Wire Size	22 to 6 AWG

Features

• Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
• Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 221 deg F
• High-dielectric shell features deep skirt design to prevent exposure of bare wire
• Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
• Copper to copper connections only
