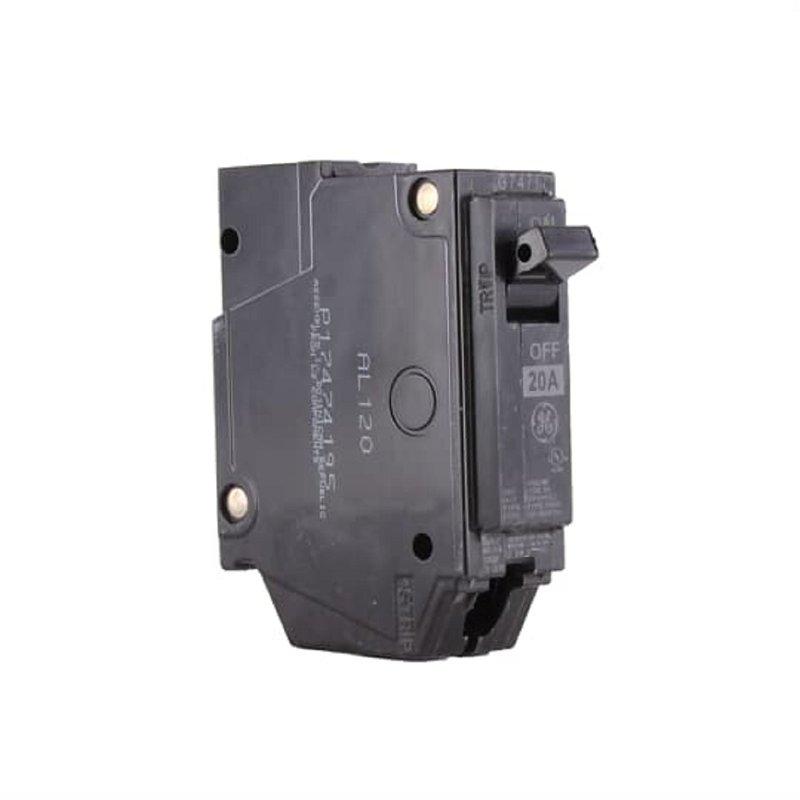

PRODUCT OVERVIEW

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 A 14 to 8 Cu or 12 to 8 Al AWG wire, 35 to 60 A 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V, 10,000 AIR.

Product Details

Actuator Type	Quick-Make Quick-Break
Current Rating	20 A
Dimensions	3.28 in L x 1 in W x 2.38 in H
Frame Type	Q-Line
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	1
Operating Frequency	50/60 Hz
Operating Temperature	60 to 75 deg C
Suitable for	Reverse Feed
Terminal Type	Screw Clamp
Trip Type	Non-Interchangeable
Type	Type THQL
Voltage Rating	120/240 V
Wire Size	14 to 8 12 to 8 AWG

Features

• Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
• Calibration screw is cemented to prevent shifting
• Breaker case is made of heat-resistant thermoset for stability and structural integrity
• Trips to the center position
