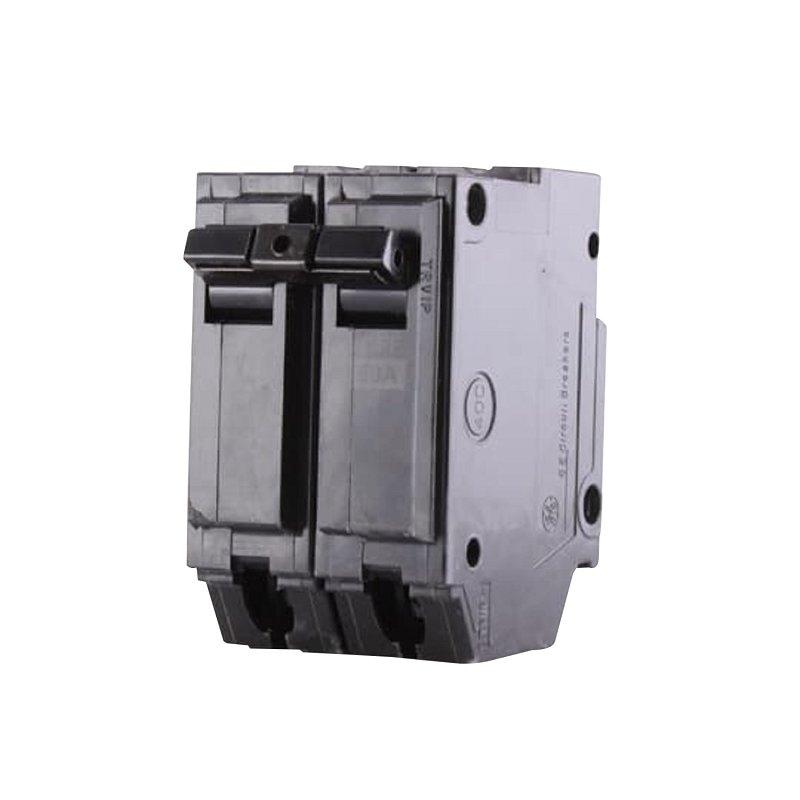

PRODUCT OVERVIEW

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger, Crouse-Hinds. 15 to 30 A 14-8 Cu or 12-8 Al AWG wire, 35 to 60 A 8-3 Cu or 8-2 Al AWG wire, 70 to 100 A 6-1/0 Cu or 4-1/0 Al AWG wire. UL Listed, HACR rated. 120/240 V, 10,000 Air. 1 in per pole (2 in total).

Product Details

Actuator Type	Quick-Make Quick-Break
Current Rating	50 A
Dimensions	3.28 in L x 2 in W x 2.38 in H
Frame Type	Q-Line
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	2
Operating Frequency	50/60 Hz
Operating Temperature	60 to 75 deg C
Suitable for	Reverse Feed
Terminal Type	Lug
Trip Sensitivity	500 A
Trip Type	Non-Interchangeable
Type	Type THQL
Voltage Rating	120/240 V
Wire Size	8 to 3 8 to 2 AWG

Features

• Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
• Calibration screw is cemented to prevent shifting
• Case is made of heat-resistant thermoset for stability and structural integrity
• Trips to the center position
