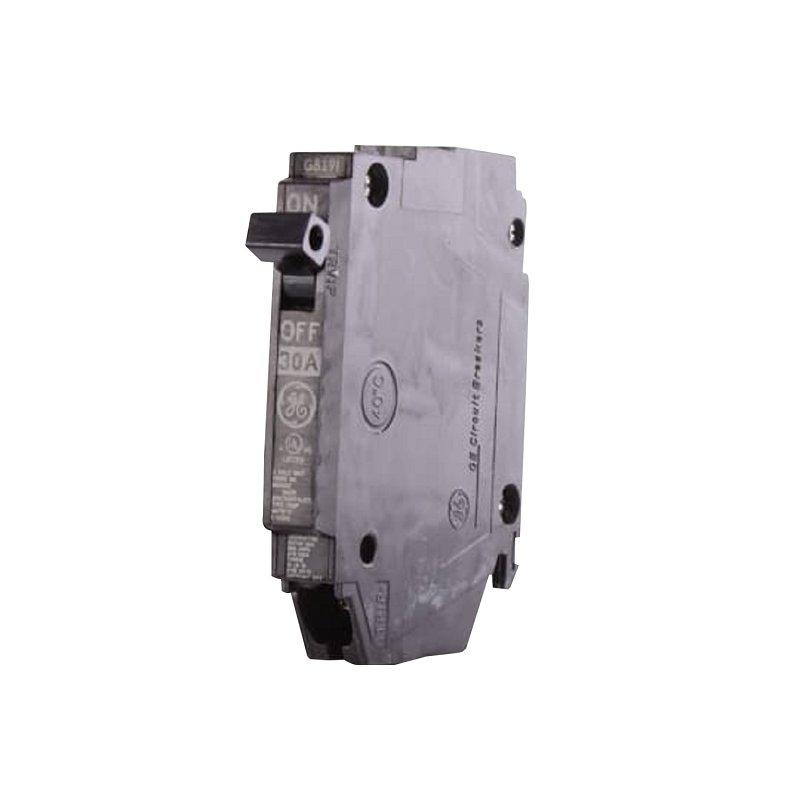

Breaker 30 Amp 1-Pole Ge

PRODUCT OVERVIEW

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.

Product Details

Actuator Type	Toggle
Current Rating	30 A
Dimensions	3.28 in L x 0.5 in W x 2.58 in H
Frame Type	Q-Line
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	1
Operating Frequency	50/60 Hz
Operating Temperature	60 to 75 deg C
Suitable for	Reverse Feed
Terminal Type	Lug
Trip Type	Non-Interchangeable
Type	Type THQP
Voltage Rating	120/240 V
Wire Size	8 to 4 AWG

Features

• Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
• Calibration screw is cemented to prevent shifting
• Case made of heat-resistant thermoset for stability and structural integrity
• Trips to the center position
