PRODUCT OVERVIEW

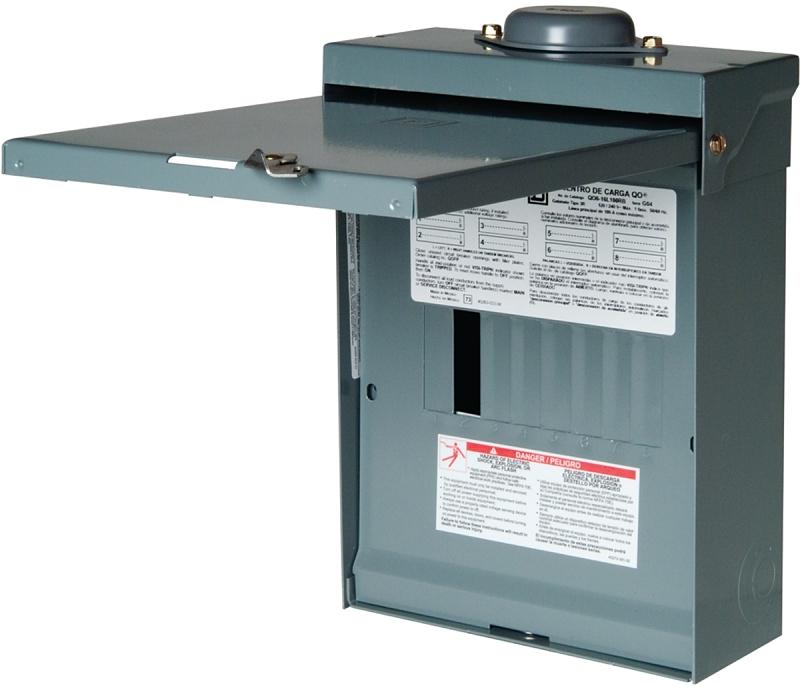

Main lug outdoor load center, 100 A, 8 space/16 circuit, has a 2-1/2 in maximum type B hub in the top end wall, a 1-1/2 in maximum knockout in the bottom end wall and a B-cap covering on the 2 in bushed opening. NEMA type 3R enclosure with a rainproof cover for outdoor use. ANSI certified and UL listed.

Product Details

Breaker/Load Center Type	Main Lug
Bus Bar Material	Aluminum
Cable Size	8 to 1 AWG
Color	Gray
Cover/Lid Type	Surface
Current Rating	100 A
Enclosure Type	NEMA 3R
Finish	Baked Enamel
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Circuits	16
Number of Phases	1
Number Of Spaces	8
Voltage Rating	120/240 V
Wiring Configuration	3-Wire

Features

• Indoor and outdoor versions
• Separate flush or surface mount covers
• Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
• Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
• Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
• QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
• Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
• Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
• Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
• Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
