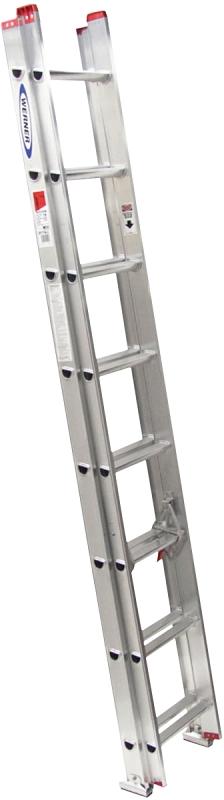

Ladder Alum Ext Type Iii 16‘

PRODUCT OVERVIEW

Twist-proof due to the Alflo rung joints. Mar-resistant molded end caps and rail closures. Traction-tred deeply serrated flat steps. Easy to grip modified I-beam siderails. Smoothly operating extruded aluminum double rung locks. Shoe pivots to allow the shoe pad full ground contact for slip resistance. UL listed. Meets ANSI code and OSHA requirements. 2-3/4 in W siderails, 15/16 in W flange, 1- 1/2 in W rungs. Base width 16 in outside rails. Length of extension ladders when not extended is half the total length of the sections.

Product Details

Adjustable Increments	12 in
Base Width	16 in
Duty Rating	Type III
Extension Length	13 ft
Flange Dimensions	16 ft H
Includes	Endcaps
Material	Aluminum
Number of Rungs	16
Opening Height	16 ft
Rail Depth	2-3/4 in
Rail Type	I-Beam
Reach Height	15 ft
Rung Size	1-1/2 in
Rung Type	D-Shaped
Section Length	8 ft
Tread Type	Traction
Weight Capacity	200 lb
Work Area	13 ft

Features

• Exclusive ALFLO rung joint means TWIST-PROOF performance
• Smooth operating pulley
• Slip-resistant TRACTION-TRED D-rungs
• Spring-loaded locks operate smoothly
• Pivoting shoe with slip-resistant pad
• Modified I-beam side rails for strength
