PRODUCT OVERVIEW

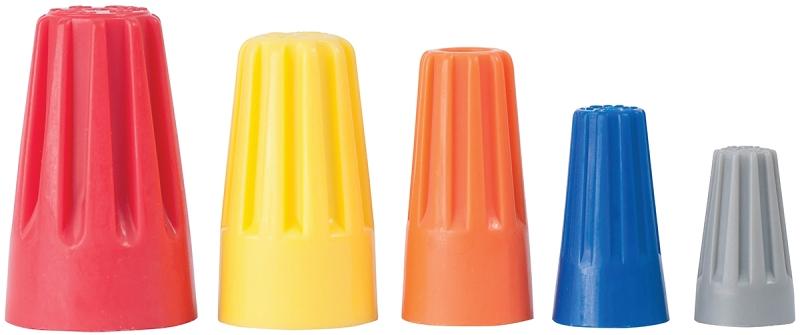

Wiregard twist-on wire connectors are designed for general-purpose applications requiring the connection of 2 or more copper wires. Wiregard connectors feature a straight-type polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity. These all-purpose connectors require fewer turns to meet required torque and meet or exceed UL pull out and dielectric test requirements. The tough thermoplastic shell shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions.

Product Details

Dimensions	3-3/4 in L x 1/10 in W x 8-1/4 in H
Includes	(3) Small Gray (4) Small Blue (6) Orange (6) Yellow and (2) Red Wires
Voltage Rating	600 V

Features

• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
• Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
• High dielectric shell features deep skirt design to prevent exposure of bare wire
• 1000 V max in lighting, fixtures or luminaries and signs
• Copper to copper connections only
