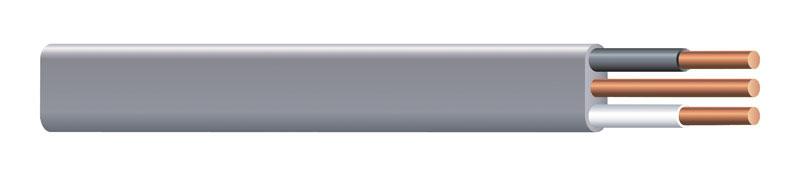

Uf Underground 10-2 W/gr 50‘

PRODUCT OVERVIEW

Type THHN insulation, rated 90 deg C, 600 V. Gray PVC jacket. For applications of direct burial, dwellings not exceeding 3 floors above grade, underground feeder to outdoor lighting or apparatus, exposed or concealed wiring in damp, moist, wet, dry and corrosive locations, general branch circuit wiring and new wiring or replacement wiring. Flame-retardant, moisture, fungus and corrosion-resistant. Sunlight-resistant jacket. JC-30B Federal specification, ASTM B-3, ASTM B-8 and NY state DOS 16120-880923-2002. UL listed.

Product Details

Conductor Insulation	PVC
Conductor Material	Copper
Current Rating	30 A
Length	50 in
Number of Conductors	2
Operating Temperature	90 deg C
Sheath Color	Gray
Sheath Material	Nylon
Strands per Conductor	2
Type	UF-B
Voltage Rating	600 V
Wire Size	10 AWG

Features

• Southwire Type UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire
• Copper conductors are annealed (soft) copper, solid or compressed stranded
• Phase conductors are PVC insulated, nylon jacketed, color coded for identification purposes
• Jacketed with sunlight, moisture and fungus-resistant gray PVC
• Underground feeder and branch circuit cable
