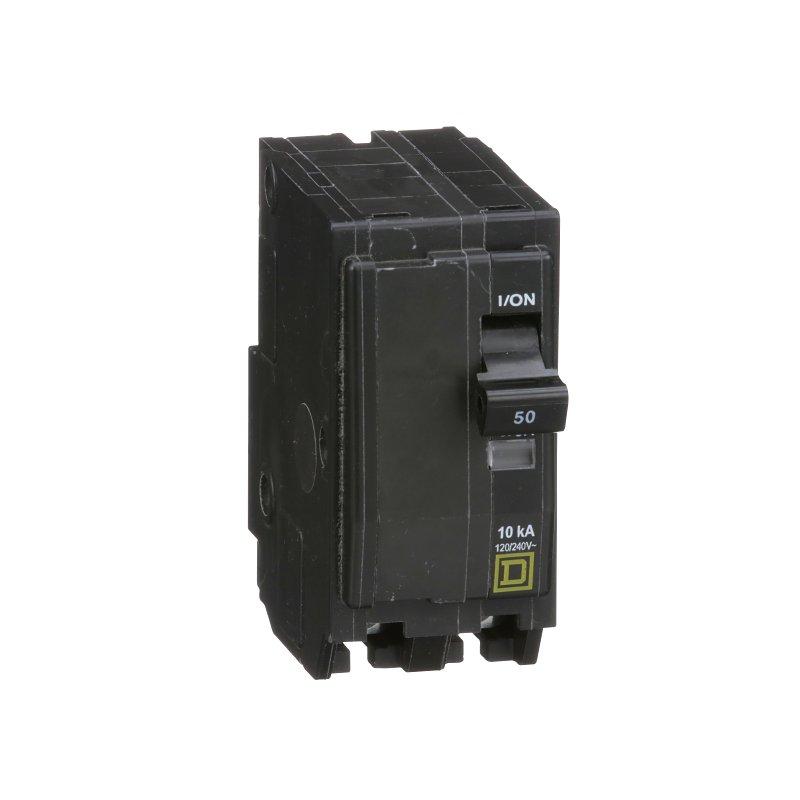

PRODUCT OVERVIEW

The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip™ Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive Qwik-Open™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.

Product Details

Actuator Type	Magnetic Thermal
Color	Black
Current Rating	50 A
Dimensions	1.5 in W x 2.91 in D x 3.12 in H
Interrupt Rating	5 10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	2
Number Of Spaces	2
Operating Frequency	50/60 Hz
Operating Temperature	104 deg F
Type	Mini
Voltage Rating	120/240 VAC 48 VDC
Wire Size	8 to 2 AWG

Features

• Contains a thermal-magnetic tripping mechanism and has a two-pole common trip
• Features a Visi-Trip indicator to easily identify the tripped circuit in the load center
• Breaker features a Visi-Trip indicator to easily identify a tripped circuit in the load center
• Has a maximum load of 240 volts with a 10,000 AIR and uses a thermal-magnetic tripping mechanism
• Compatible with QO load centers, CSED's and NQOD panel board
