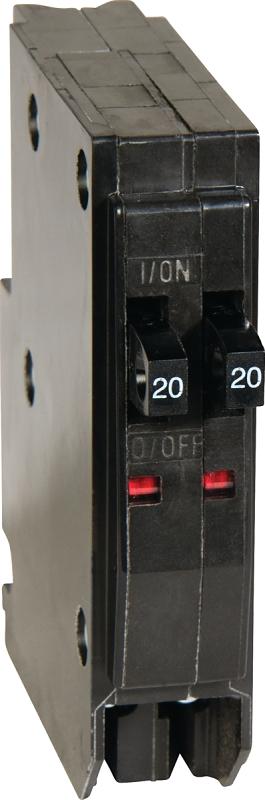

Breaker 20 Amp Tandem Qo
$32.99
In Stock
We currently have 2 in stock.
PRODUCT OVERVIEW
The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip™ Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive Qwik-Open™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.Product Details
| Actuator Type | Magnetic Thermal |
| Color | Black |
| Current Rating | 20 A |
| Dimensions | 0.75 in W x 2.91 in D x 3.22 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Number Of Spaces | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 104 deg F |
| Type | Mini Tandem |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 8 AWG |
Features
- Shielded copper bus bar
- Available in single and three phase
- Ground bar is included with all main lugs load centers with three mounting locations
- Convertible mains let you meet changing job-site requirements
- Tangential main service knockouts
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-Open circuit breaker protection
- Exclusive Visi-Trip red indicator
- Quick make - quick break mechanism
- Plug-on design, easy to install
