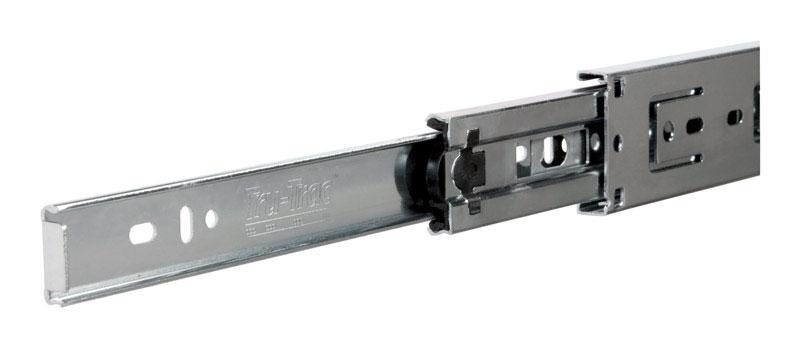

Drawer Slide Side-mount Kv True-trac 16"

PRODUCT OVERVIEW

Direct access mounting holes, precision ball bearings, telescopic action, non-handed design and lever disconnect. Includes screws for installation. Height of 1-1/8 in. Clearance required is 1/2 in plus 1/32 in minus 0 each side. Maximum drawer width 24 in.

Product Details

Bearing Type	Ball
Finish	Zinc
Includes	Screws
Rail Length	400 mm
Rail Width	12.7 mm
Weight Capacity	100 lb

Features

• Lever release disconnect type
• Ball-bearing construction delivers a smooth operation and a positive stop bumper provides an anti-rebound feature
• True-Trac™ 100 features a non-handed design, industry standard 1/2 in side clearance and a lever disconnect for easy drawer removal
