PRODUCT OVERVIEW

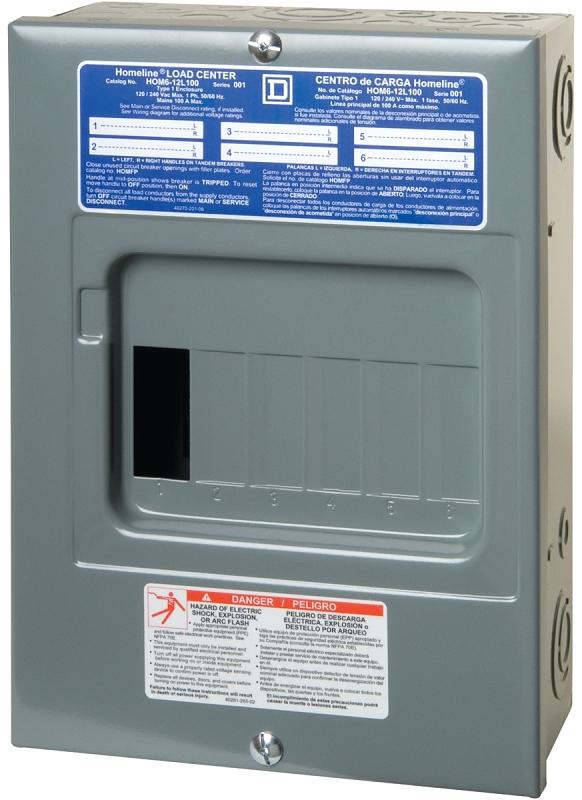

Main lug indoor load center, 100 A, 6 space/12 circuit. NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.

Product Details

Breaker/Load Center Type	Main Lug
Bus Bar Material	Aluminum
Cable Size	8 to 1 AWG
Color	Gray
Cover/Lid Type	Flush
Current Rating	100 A
Enclosure Type	NEMA 1
Finish	Baked Enamel
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Circuits	12
Number of Phases	1
Number Of Spaces	6
Voltage Rating	120/240 V
Wiring Configuration	3-Wire

Features

• Accommodates plug-on secondary surge arrestor
• Overhead/underground feed simply by rotating the device before installing
• Surface mount device cover without a door
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
