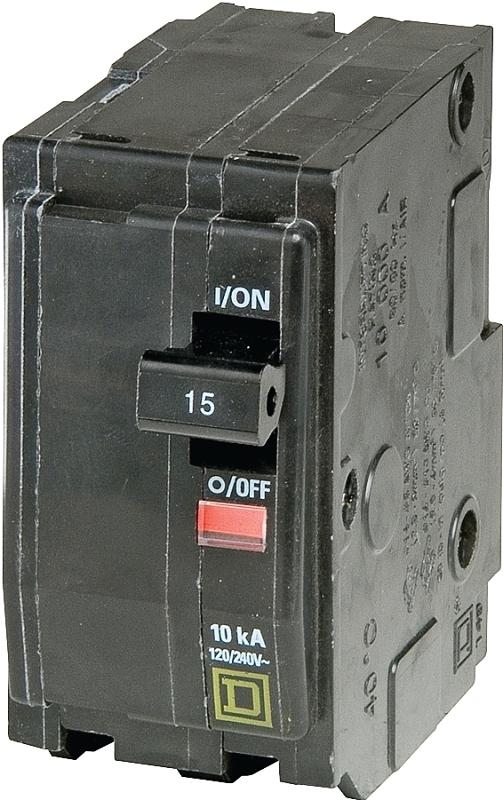

PRODUCT OVERVIEW

The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip™ Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive Qwik-Open™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.

Product Details

Actuator Type	Magnetic Thermal
Color	Black
Current Rating	15 A
Dimensions	1.5 in W x 2.91 in D x 3 in H
Interrupt Rating	5 10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	2
Number Of Spaces	2
Operating Frequency	50/60 Hz
Operating Temperature	104 deg F
Type	Mini
Voltage Rating	120/240 VAC 48 VDC
Wire Size	14 to 18 AWG

Features

• Square D CAFI circuit breakers feature time saver diagnostics to help find circuit issues faster
• UL-listed and now available in QO single-pole circuit breakers with 15 and 20 A ratings
• Square D CAFI circuit breakers remember their last trip-ground fault, arc fault, overload and short circuit
• QO plug-on neutral CAFI circuit breakers are designed for use in QO plug-on neutral load centers
