PRODUCT OVERVIEW

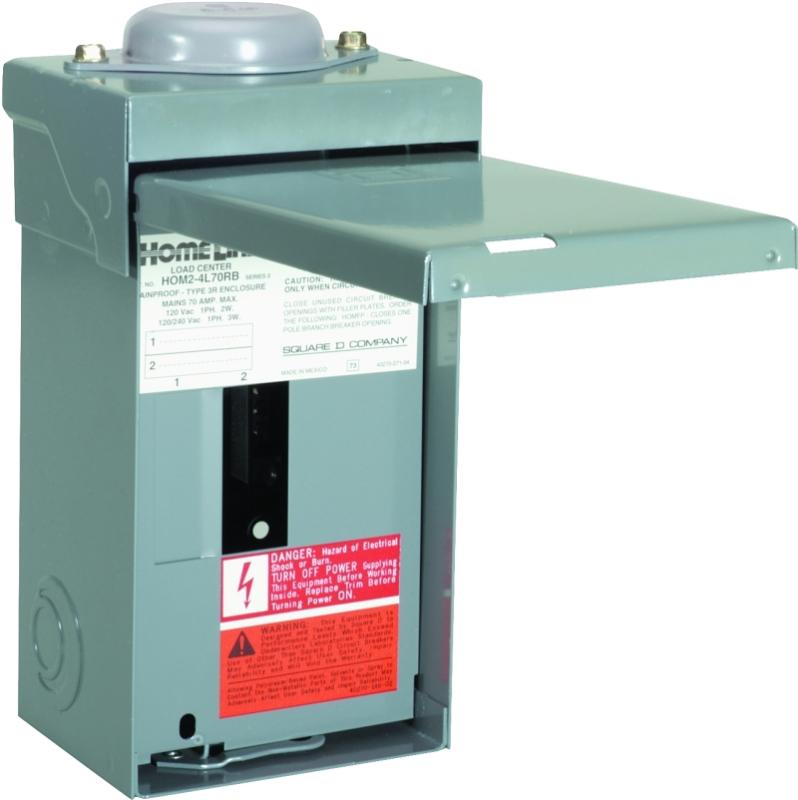

Main lug outdoor load center, 70 A, 2 space and 4 circuit. NEMA type-3R enclosure with a rainproof cover for outdoor use. Class 1170 unit is intended for use in fixed applications and can accommodate overhead or underground feed. Maximum SCCR of 10,000. ANSI certified and UL listed.

Product Details

Breaker/Load Center Type	Main Lug
Bus Bar Material	Aluminum
Cable Size	12 to 3 14 to 4 AWG
Color	Gray
Cover/Lid Type	Surface
Current Rating	70 A
Enclosure Type	NEMA 3R
Finish	Baked Enamel
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Circuits	4
Number of Phases	1
Number Of Spaces	2
Voltage Rating	120/240 V
Wiring Configuration	3-Wire

Features

• Accommodates plug-on secondary surge arrestor
• Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
• Surface mount device cover without a door
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
