Loadcenter,100a Indoor

PRODUCT OVERVIEW

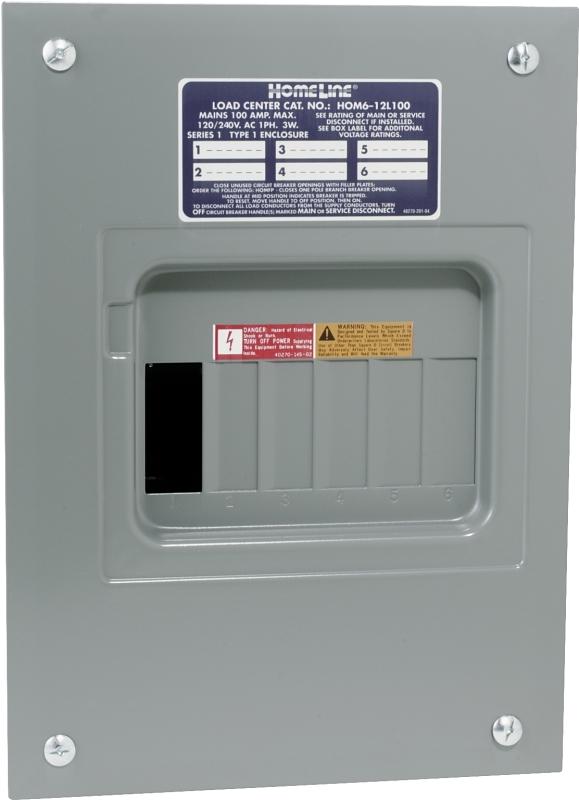

Main lug indoor load center, 100 A, 6 space/12 circuit. 1-1/2 in knockouts in the top and bottom end walls to allow for use with either overhead or underground fed electrical wiring. 22,000 short circuit current rating (SCCR) and can be fitted with a secondary surge arrestor (not included) for added protection. Single phase, 3-wire, solid neutral. UL listed.

Product Details

Breaker/Load Center Type	Main Lug
Bus Bar Material	Aluminum
Cable Size	8 to 1 AWG
Color	Gray
Cover/Lid Type	Flush
Current Rating	100 A
Enclosure Type	NEMA 1
Finish	Baked Enamel
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Circuits	12
Number of Phases	1
Number Of Spaces	6
Voltage Rating	120/240 V
Wiring Configuration	3-Wire

Features

• Accommodates plug-on secondary surge arrestor
• Overhead/underground feed simply by rotating the device before installing
• Flush mount device cover without a door
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
