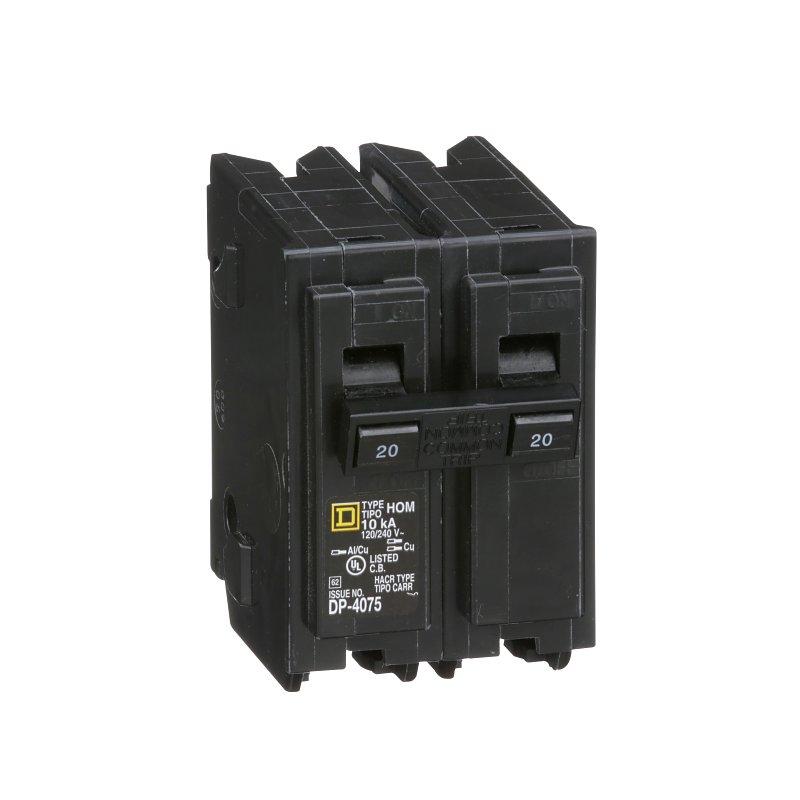

PRODUCT OVERVIEW

Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.

Product Details

Color	Black
Current Rating	20 A
Dimensions	2 in W x 2.98 in D x 3.13 in H
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	2
Number Of Spaces	2
Operating Frequency	50/60 Hz
Operating Temperature	104 deg F
Terminal Type	Clamp
Trip Sensitivity	27 A
Trip Type	Fixed
Type	Mini
Voltage Rating	120/240 V
Wire Size	14 to 10 14 to 8 AWG

Features

• HOM one-pole standard circuit breakers (15 - 50 A)
• HOM two-pole standard circuit breakers (15 - 200 A)
• HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
• HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
• HOM ground-fault circuit interrupters (1 and 2-pole, 15 - 50 A)
• Square D arc-fault circuit-interrupters (1-pole, 15 A and 20 A)
• Square D combination arc-fault circuit interrupters (1-pole, 15 A and 20 A)
• Available accessories include handle attachments, filler plates, and neutral lugs
• HOM sub-feed lugs, two-pole, rated 125 A and 225 A
