Raintite Box Hom6-12l100r 100A
$55.49
In Stock
We currently have 1 in stock.
PRODUCT OVERVIEW

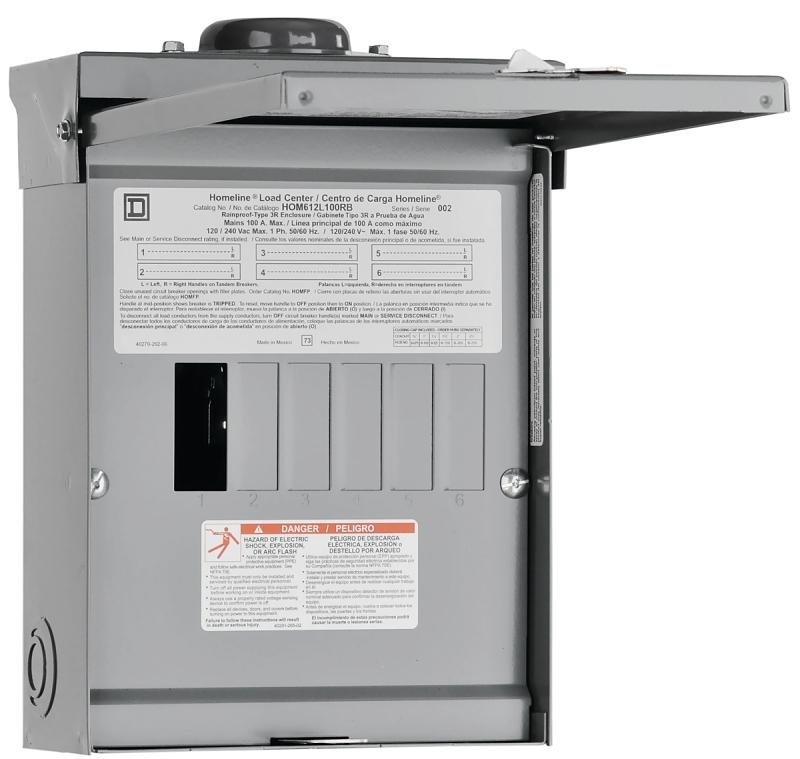

Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.Product Details
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Aluminum |
| Cable Size | 8 to 1 AWG |
| Color | Gray |
| Cover/Lid Type | Surface |
| Current Rating | 100 A |
| Enclosure Type | NEMA 3R |
| Finish | Baked Enamel |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Circuits | 12 |
| Number of Phases | 1 |
| Number Of Spaces | 6 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
Features
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
