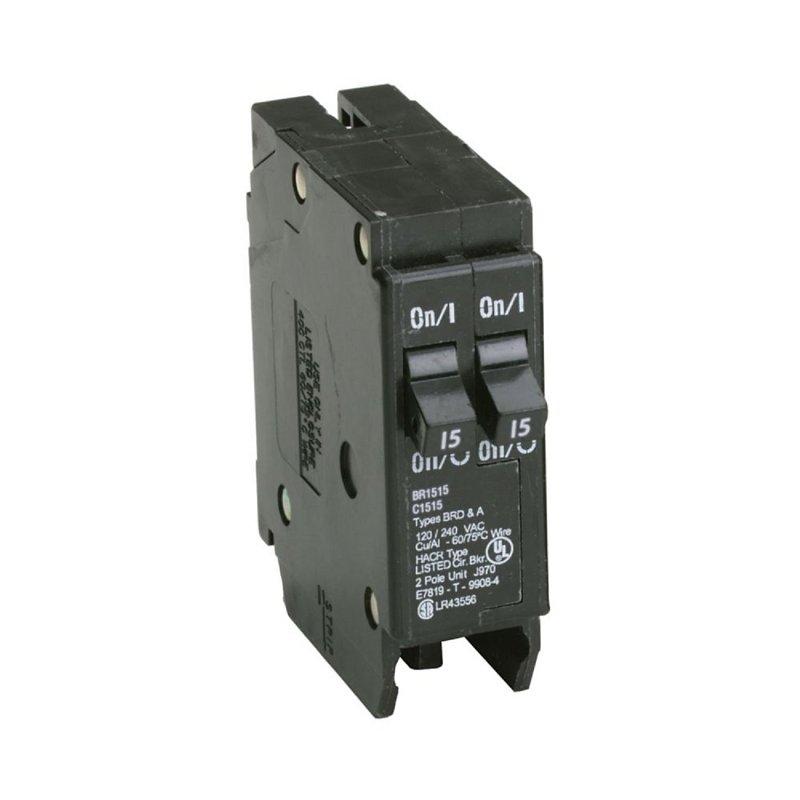

Breaker Ch Br515 1P 15A

PRODUCT OVERVIEW

Non-circuit limiting, less rejection tabs. 120 VAC, 10,000 AIC. One space per pole.

Product Details

Actuator Type	Quick-Make Quick-Break
Current Rating	15 A
Dimensions	3.1 in L x 0.98 in W x 2.89 in H
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	1
Operating Frequency	50/60 Hz
Operating Temperature	60 to 75 deg C
Suitable for	Overload and Short Circuit Protection of Electrical System
Type	Duplex Type BR
Voltage Rating	120/240 V
Wire Size	14 to 4 AWG

Features

• All BR circuit breakers have rejection tab feature
• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
