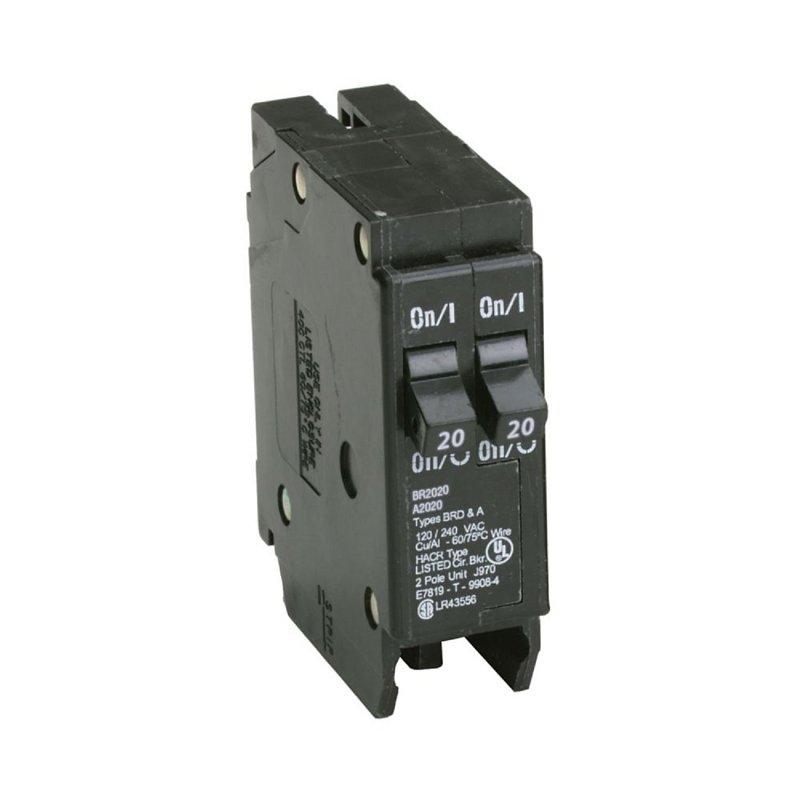

Breaker,20a Twin Single
$29.99
In Stock
We currently have 4 in stock.
PRODUCT OVERVIEW
Non-circuit limiting, less rejection tabs. 120 VAC, 10,000 AIC. One space per pole.Product Details
| Actuator Type | Quick-Make Quick-Break |
| Current Rating | 20 A |
| Dimensions | 3.1 in L x 0.98 in W x 2.89 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 60 to 75 deg C |
| Type | Duplex Type BR |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 4 AWG |
Features
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
