Sharkbite Elbow 1/2X1/2

PRODUCT OVERVIEW

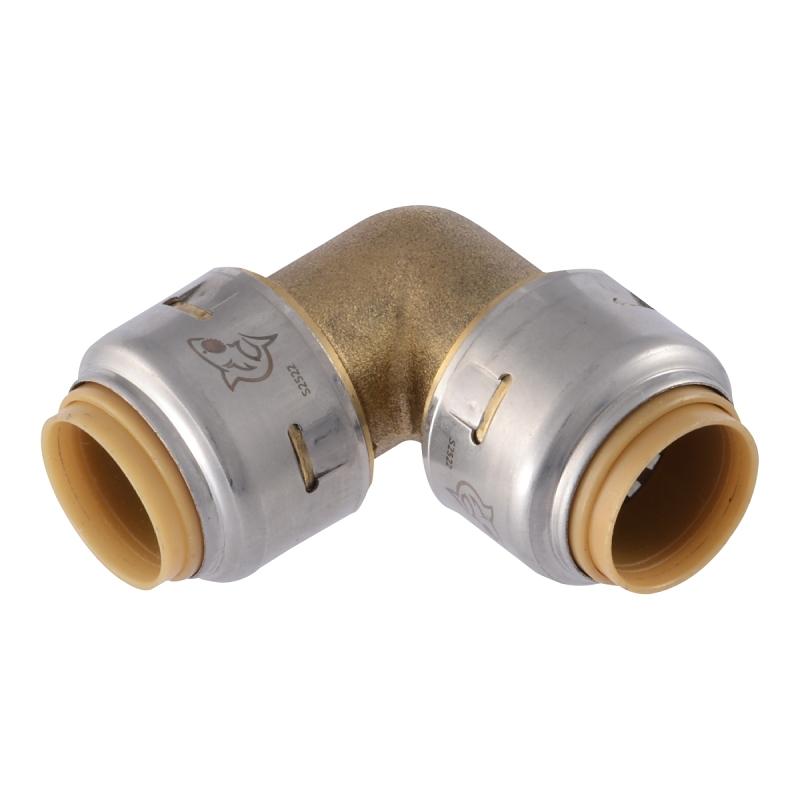

The SharkBite Max 90 deg elbow offers an innovative push-to-connect design for quick and easy installation when connecting two pieces of potable water pipe. Ideal for working in tight spaces, the 90 deg brass push-to-connect elbow can be installed in wet lines with no special tools, crimping, soldering or glue required. Faster install time and ease-of use reduces installation errors.

Product Details

Angle	90 deg
Material	Brass
Nominal Size	1/2 in
Operating Temperature	200 deg F
Pressure Rating	250 psi
Suitable for	PEX copper CPVC PE-RT or HDPE SDR-9 Pipe

Features

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe in any combination
• Half the insertion effort for smoother and faster connections, double the burst pressure
• Can be installed on wet lines and pressure tested immediately
• Stainless steel retainer adds strength and durability
• High-performance DZR lead-free brass body
• No special tools, crimping, soldering or glue required
• Can be rotated after installation
• No tube liner required for PEX
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool
• Stainless steel collar allows fittings to withstand 2X the burst pressure
