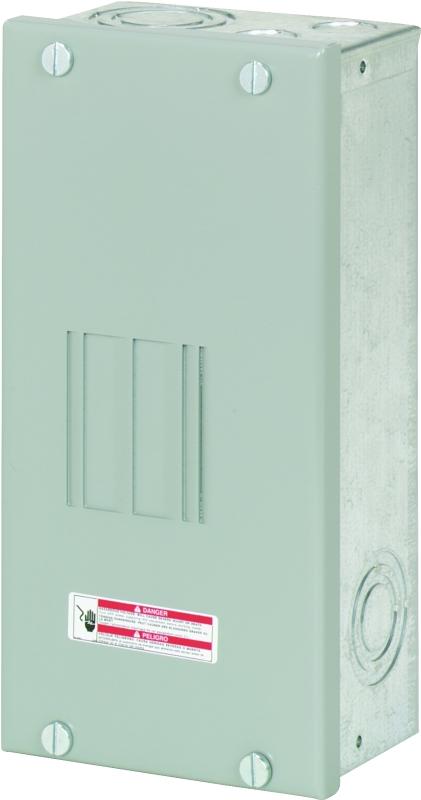

Load Center Flush 70Amp

PRODUCT OVERVIEW

Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Product Details

Breaker/Load Center Type	Main Lug
Bus Bar Material	Aluminum
Cable Size	8 to 2 AWG
Color	Light Gray
Current Rating	70 A
Enclosure Type	NEMA 1
Interrupt Rating	10 kA
Mounting Type	Flush
Number of Circuits	4
Number of Phases	1
Number Of Spaces	2
Voltage Rating	120/240 V
Wiring Configuration	3-Wire

Features

• Larger knockout provides easier installation and time savings
• Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
• 2/0 lug easily removable and can be installed in any location on the neutral bar
• Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
• Excellent conductivity and corrosion resistance, copper bus options available
• Drywall marking on enclosure - indicates proper mounting depth for flush applications
• Tangential center knockout, easier installation for conduit applications
• Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
• Neutral bus (strap) is easily removable for sub-panel applications
• Bonding Z-strap provides easy field conversion for service entrance applications
