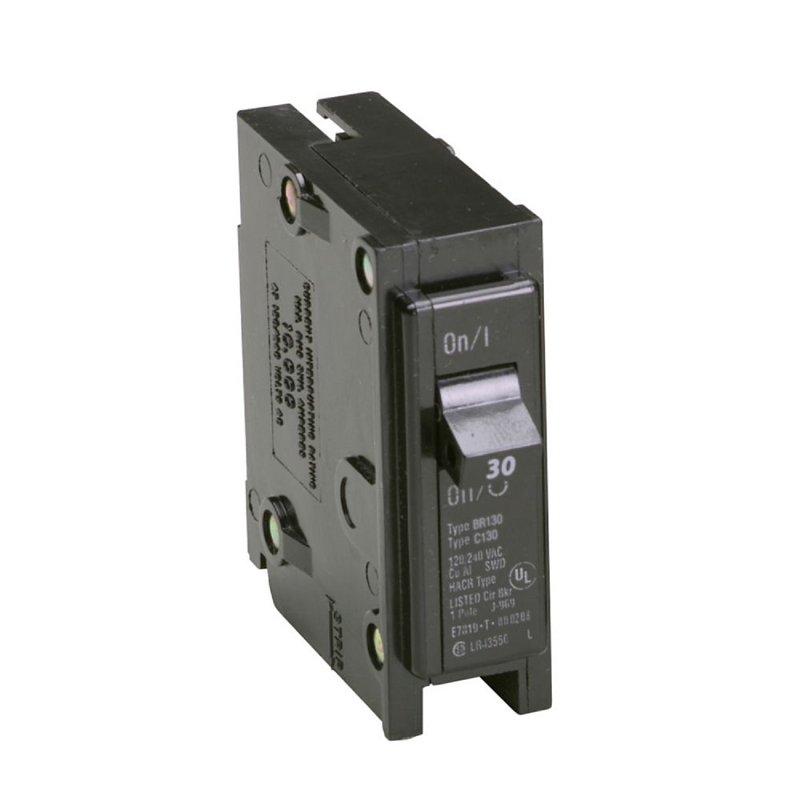

Breaker 30Amp 1-Pole Ch

PRODUCT OVERVIEW

Switching duty rating. Thermal magnetic 40 deg C. Interchangeable, will replace Bryant, Westinghouse and Challenger. Type BR. 120/240 V, 10,000 AIR. 1 in per pole.

Product Details

Actuator Type	Quick-Make Quick-Break
Current Rating	30 A
Dimensions	2.92 in L x 0.98 in W x 2.89 in H
Interrupt Rating	42 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	1
Operating Frequency	50/60 Hz
Operating Temperature	40 deg C
Type	Mini Type BR
Voltage Rating	120/240 V
Wire Size	14 to 4 AWG

Features

• All BR circuit breakers have rejection tab feature
• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
