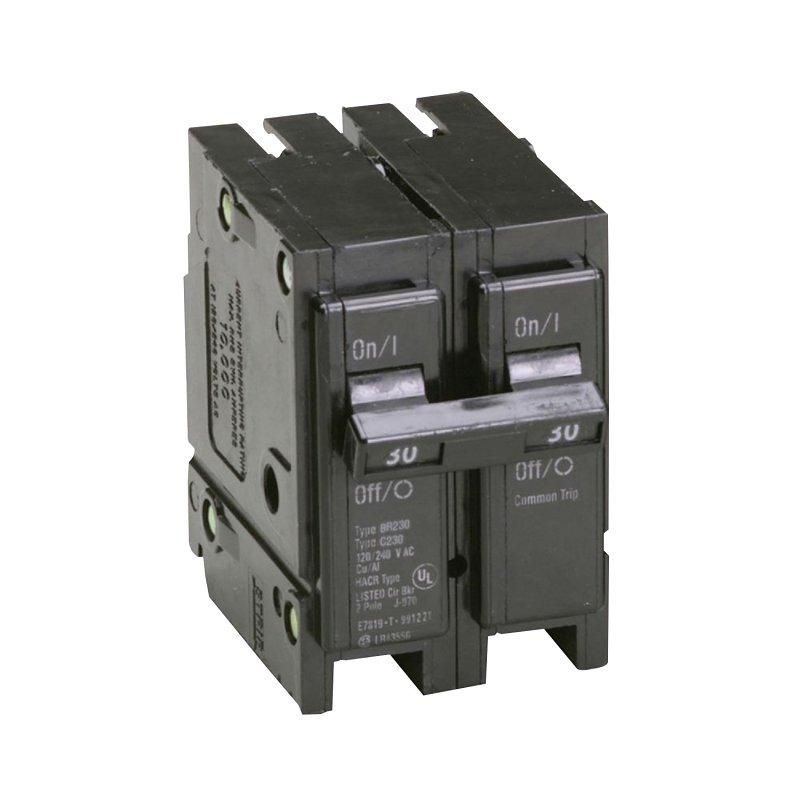

Breaker 30Amp 2 Pole Ch

PRODUCT OVERVIEW

Interchangeable, will replace: Bryant, Challenger and Westinghouse. Type BR. 120/240 V. 10 kAIC, 10,000 AIR. 2 spaces, 2 in per breaker.

Product Details

Actuator Type	Quick-Make Quick-Break
Current Rating	30 A
Dimensions	2.92 in L x 1.96 in W x 1.92 in H
Interrupt Rating	42 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	2
Operating Frequency	50/60 Hz
Operating Temperature	60 to 75 deg C
Suitable for	Overload and Short Circuit Protection of Home Wiring
Type	Mini Type BR
Voltage Rating	120/240 V
Wire Size	14 to 4 AWG

Features

• All BR circuit breakers have rejection tab feature
• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
