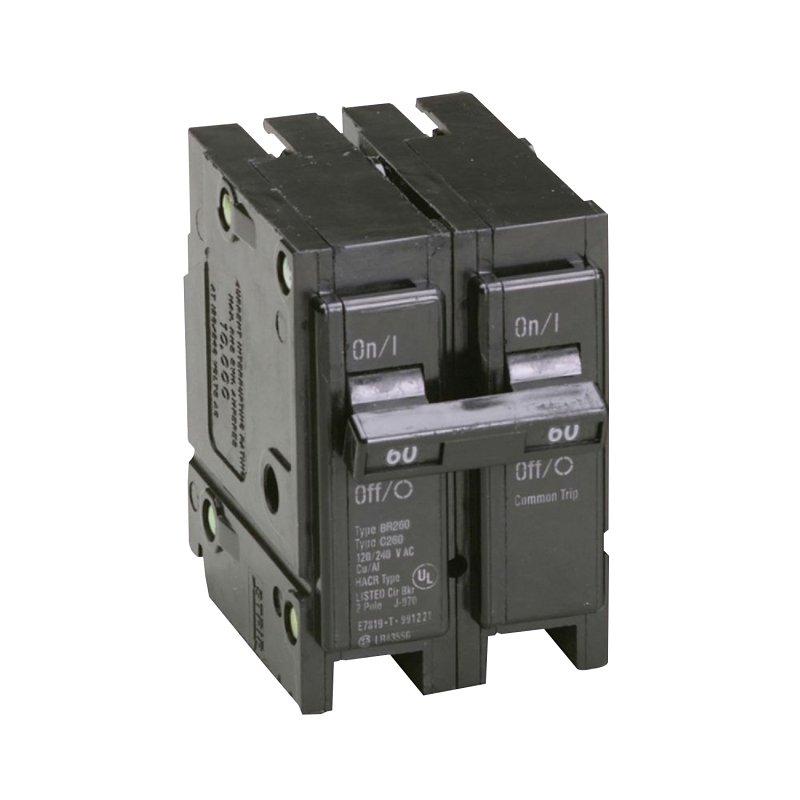

Breaker Cutler-hammer 2-Pole 60A

PRODUCT OVERVIEW

Cutler-Hammer Circuit Breaker, Type BR, 120/240 V, 60 A, 50/60 Hz Operating Frequency, 1 ph, 2 Pole, 42 kA Interrupt, Quick-Make, Quick-Break Actuator, 8 to 1/0 AWG Wire, Plug Mounting, Dimensions: 2.93 in L x 1.96 in W x 2.92 in H, 60 to 75 deg C Operating

Product Details

Actuator Type	Quick-Make Quick-Break
Current Rating	60 A
Dimensions	2.93 in L x 1.96 in W x 2.92 in H
Interrupt Rating	42 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	2
Operating Frequency	50/60 Hz
Operating Temperature	60 to 75 deg C
Type	Type BR
Voltage Rating	120/240 V
Wire Size	8 to 1/0 AWG

Features

• All BR circuit breakers have rejection tab feature
• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
