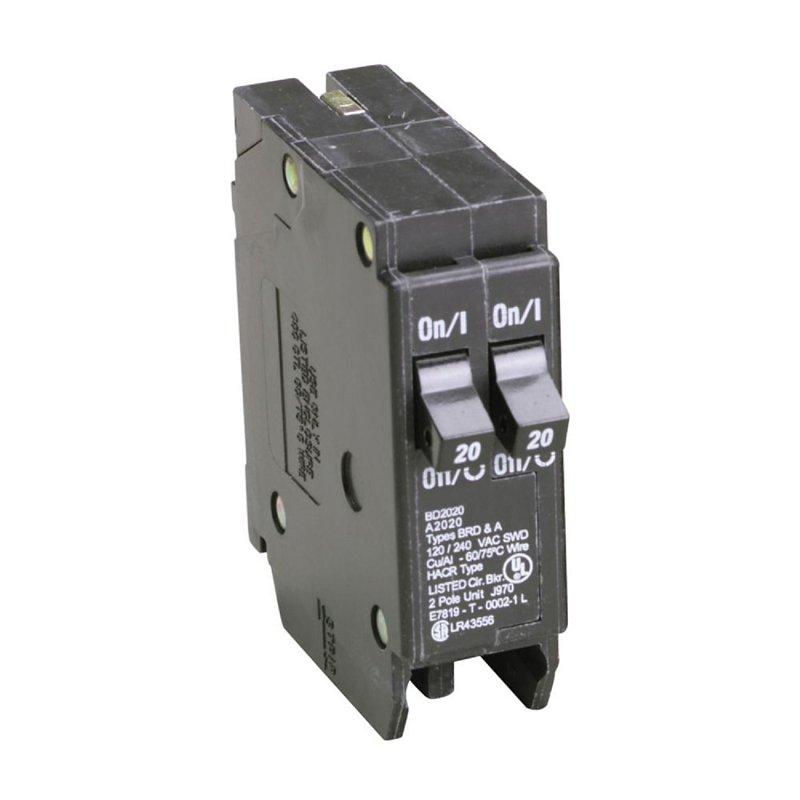

Breaker 20 Amp Tamdem Ch

PRODUCT OVERVIEW

Switching duty rating, duplex type breaker requires 1 in per breaker. Thermal magnetic 40 deg C breakers have rejection tab feature, allows only 42 circuits in the panel in compliance with NEC article 384-15. Interchangeable will replace Bryant, Challenger and Westinghouse. Type BR 120/240 V. 10,000 AIR. 1 in per breaker.

Product Details

Actuator Type	Magnetic Thermal
Current Rating	20 A
Dimensions	3.1 in L x 0.98 in W x 2.89 in H
Interrupt Rating	10 kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	1
Number Of Spaces	1
Operating Frequency	50/60 Hz
Operating Temperature	40 deg C
Suitable for	Overload and Short Circuit Protection of Home Electrical System
Terminal Type	Feed-Thru
Trip Type	Instantaneous
Type	Duplex Type BD
Voltage Rating	120 V
Wire Size	14 to 4 AWG
